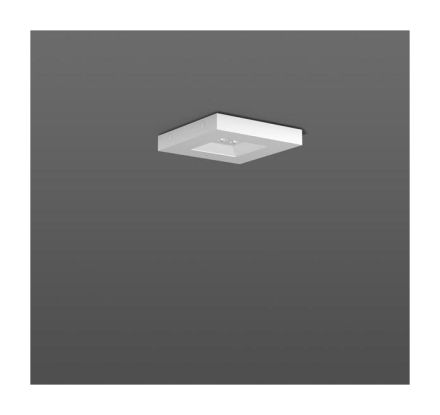

RZB 672171.002.89 Centryxx 7W 198x198x38 AC Contr. LED emergency light

RZB 672171.002.89 Centryxx 7W 198x198x38 AC Contr. LED emergency light

In stock

SKU: 530636

Price on request

€225.38

€0

Overview

Protection class IP 65, dust-tight and protected against water jets from all directions. Extremely flat design to match modern architecture. Ball-proof according to DIN 18032-03. Large luminaire spacing for escape route lighting thanks to special lenses. Very low maintenance costs thanks to automatic self-test. Best thermal management thanks to die-cast aluminum fitting. Plastic cover (polycarbonate). Die-cast aluminum bracket, powder-coated. Clear plastic lenses for escape route lighting. Control gear built in. With AC-Control monitoring module for Luxifair central battery systems. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	6500 K
Length:	198 mm
Width:	198 mm
Height/Depth:	38 mm
Max. System performance:	6.70 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	360 lm
Luminous flux in standby mode:	360 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Ceiling mounting
Housing material:	aluminum
Suitable for type of marking:	other
Feed:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	28 to 30 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Power factor:	0.56
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
