RZB 672181.003.1.07 Varioplast IL LED emergency light

In stock

SKU: 943406

Price on request

€254.43

€0

Overview

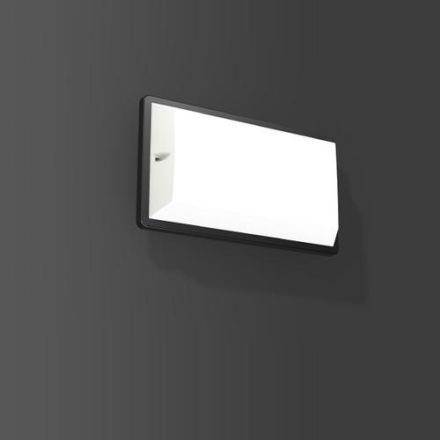

Varioplast IL LED emergency light

Property	Value
Housing color:	black
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC
Nominal voltage:	220 to 240 V
Color temperature:	4000 K
Length:	320 mm
Width:	186 mm
Height/Depth:	80 mm
Max. System performance:	8.30 W
Battery type:	other
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	870 lm
Luminous flux in standby mode:	360 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Plastic
Suitable for Type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of light sources:	1
Number of lamp heads:	1
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited Surface temperature D-mark according to EN 60598-2-24:	yes
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Type of wiring:	Termination
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
With remote control:	no
Replaceable operating device:	yes
Max. number of lights circuit breaker B16:	30
Max. number of lights circuit breaker C16:	30
Constant luminous flux control:	no
