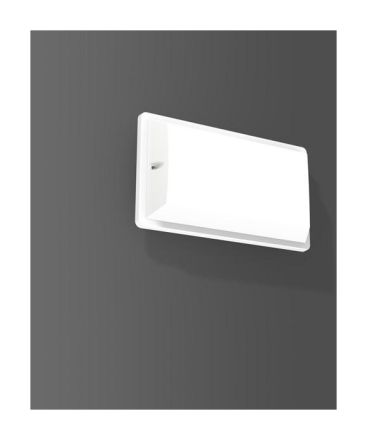

RZB 672182.002 Varioplast 6.2W 320x186x80 LED emergency light

RZB 672182.002 Varioplast 6.2W 320x186x80 LED emergency light

In stock

SKU: 530564

Price on request

€103.30

€0

Overview

Protection class IP 55, dust and water jet protected. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which a deposit of non-conductive dust on the luminaire can be expected. Ball impact proof according to DIN 18032-03. Suitable for use in the food and beverage industry. Easy-to-install design thanks to fold-down mounting plate. Even greater luminaire spacing thanks to powerful LEDs. Suitable for mounting heights of up to 15 meters. Bracket made of plastic (polycarbonate). Cover made of plastic (polycarbonate), opal. Suitable for optimal escape route illumination. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	4000 K
Length:	320 mm
Width:	186 mm
Height/Depth:	80 mm
Max. System performance:	7.70 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	880 lm
Luminous flux in standby mode:	870 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Plastic
Suitable for type of marking:	other
Feed:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	32 to 35 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	yes
Rated ambient temperature according to IEC62722-2-1:	-25 to 40 °C
Power factor:	0.54
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
