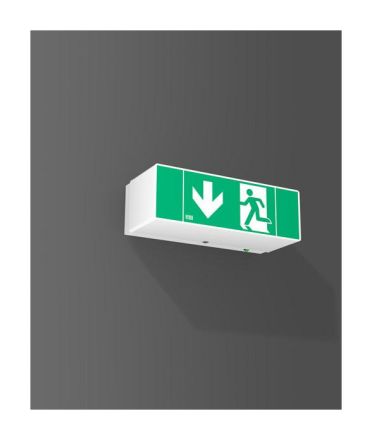

RZB 672189.002 2x1.1W 230x103x76 8h Stest LED emergency light

In stock
SKU: 530561
€160.36
Into a basketIn the basketGo

Overview

Very compact design. Unobtrusive design. Universally applicable, can be used as a ceiling or wall-mounted version. Reliable and long-lasting LED technology. Easy installation. Automatic self-test as standard. 4 films for escape route marking included. Powder-coated metal bracket. Opal plastic cover. Set of films with escape signs for escape route marking included. Single battery system with integrated self-test. Light source (LED) included in delivery. Energy efficiency class A++

Property Value
Housing color: white
Protection rating (IP): IP40
Protection class: I
Voltage type: AC
Detection range: 14 m
Color temperature: 6500 K
Length: 230 mm
Width: 103 mm
Height/Depth: 76 mm
Max. System performance: 4.80 W
Battery type: NiMh
Nominal operating time: 8 h
Operating device: EVG
Light source: LED not replaceable
Impact resistance: IK03
Socket: without
Nominal voltage: 220 to 240 V
With remote switch connection: no
Cover material: opal plastic
With light source: yes
Monitoring device: automatic self-test
Mounting type: wall mounting/ceiling mounting
Housing material: steel
Suitable for marking type: other
Feed-in: decentralized (single battery)
Function: Escape route marking
With pictogram: yes
Suitable for number of lamps: 2
Number of lamp heads: 1
LED nominal current at constant current: 16 to 17 mA
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 25 °C
Type of wiring: suitable for through wiring
Number of poles: 4
Conductor cross-section: 2.50 mm²
Connection type: Plug connection

Characteristics

HAB2x1,1W 230x103x76 8h test
ManufacturerRZB
HAN672189.002
GTIN4051859165538
Connection typePlug connection
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceElectronic ballast
Width103 mm
Color temperature6500K
VersionWithout
FunctionEscape route marking
Suitable for number of lamps2
Housing colorWhite
Height/Depth76 mm
LED nominal current at constant current16 to 17 mA
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Length230 mm
Max. system performance4.80W
With light sourceYes
Mounting typeWall mounting/ceiling mounting
Nominal voltage220 to 240 V
Number of poles4
Impact resistanceIK03
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialSteel
