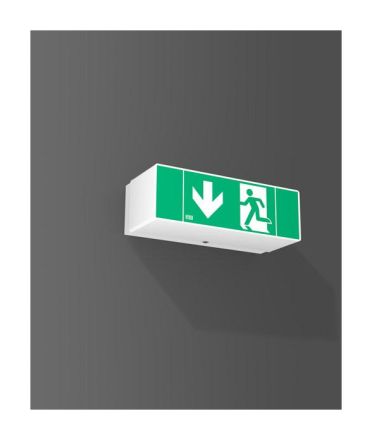

RZB 672190.002 2x1.1W 230x106x76 LED emergency light

RZB 672190.002 2x1.1W 230x106x76 LED emergency light

In stock

SKU: 530541

Price on request

€104.54

€0

Overview

Very compact design. Unobtrusive design. Reliable and long-lasting LED technology. Easy to install. Universally applicable, can be used as a ceiling or wall-mounted version. 4 films for escape route marking included. Powder-coated metal bracket. Opal plastic cover. Film set with escape signs for escape route marking included. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Detection range:	14 m
Color temperature:	6500 K
Length:	230 mm
Width:	106 mm
Height/Depth:	76 mm
Max. System performance:	3.80 W
Battery type:	other
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Steel
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	2
Number of lamp heads:	1
LED nominal current at constant current:	13 to 15 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.55
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
