RZB 672217.002.1.07 GSUN S 4.7W LED emergency light

RZB 672217.002.1.07 GSUN S 4.7W LED emergency light

In stock

SKU: 533759

Price on request

€254.37

€0

Overview

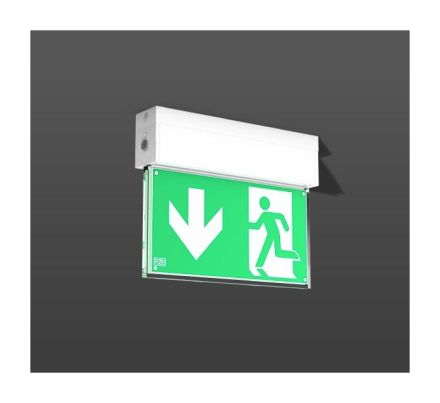

Escape sign disc light with highly efficient LED technology. Rated operating time adjustable to 1/3/8 hours (only version without BUS connection). Housing made of high-quality aluminum. Very low maintenance costs thanks to the latest LED technology. LED service life approx. 50,000 hours. Automatic self-test as standard for single battery lights. 5-piece pictogram set included for easy attachment. Automatic self-test can be deactivated. Universally applicable, can be used as a ceiling or wall-mounted version. Housing made of extruded aluminum profile. With universal fastening kit for ceiling and wall mounting. Four films with escape signs for marking escape routes and a white film included. Single battery system with integrated self-test and feedback via Dali bus exclusively to the RZB monitoring system 985405. Light source (LED) included in delivery.

Property	Value
Housing color:	white
Protection type (IP):	IP30
Protection class:	I
Voltage type:	AC
Detection range:	24 m
Color temperature:	4000 K
Length:	247 mm
Width:	45 mm
Height/Depth:	195 mm
Max. System performance:	4.70 W
Battery type:	NiMh
Nominal operating time:	3 h
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Housing material:	aluminum
Feed-in:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	20 to 22 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
