RZB 672217.004.2.04 GSUN LED emergency light

In stock

SKU: 897238

Price on request

€248.92

€0

Overview

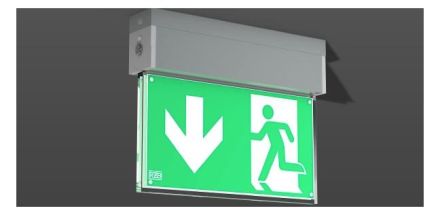

Light for escape route marking. Housing made of powder-coated extruded aluminum profile. 4 escape sign films and 1 white film including fastening pins for attaching included. Universal fastening kit for ceiling and wall mounting. Control gear integrated. Single battery system with automatic self-test and feedback to the RZB monitoring systems MultiDigit and MWEB.

Property	Value
Housing color:	Silver
Protection type (IP):	IP30
Protection class:	I
Voltage type:	AC
Detection range:	24 m
Color temperature:	4000 K
Length:	247 mm
Width:	45 mm
Height/Depth:	195 mm
Max. System performance:	4.60 W
Battery type:	NiMh
Nominal operating time:	8 h
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Housing material:	aluminum
Feed-in:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	19 to 21 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
