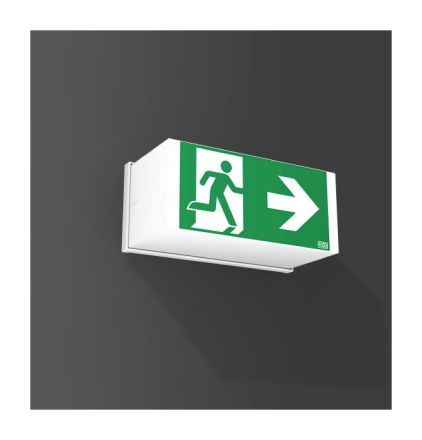

RZB 672247.002.1 Multivariable 4000K IP54 274x125x139mm LED emergency light

RZB 672247.002.1 Multivariable 4000K IP54 274x125x139mm LED emergency light

In stock

SKU: 704955

Price on request

€145.05

€0

Overview

Lights for escape route marking. Powder-coated metal fitting. Opal plastic diffuser (polycarbonate). 4 films for escape route marking included (according to ISO 7010). Operating device suitable for direct current, suitable for central emergency power supply.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	I
Type of voltage:	AC/DC
Detection range:	21 m
Color temperature:	4000 K
Length:	274 mm
Width:	125 mm
Height/Depth:	139 mm
Max. System performance:	3.20 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Aluminium
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	13 to 15 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.55
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
