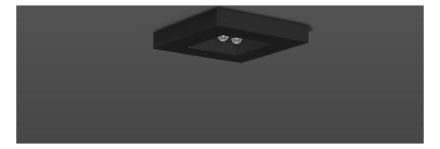

RZB 672294.003 Centryxx LED emergency light

In stock

SKU: 897883

Price on request

€165.85

€0

Overview

Flat, square surface-mounted light. For escape route lighting. Die-cast aluminum fitting, powder-coated. Plastic (polycarbonate) cover. With plastic lenses for escape route lighting. Operating device suitable for direct current, suitable for central emergency power supply. Ball-proof in accordance with DIN 18032-03. Approved for use in the food and beverage industry.

Property	Value
Housing color:	black
Protection rating (IP):	IP65
Protection class:	I
Voltage type:	AC/DC
Color temperature:	6500 K
Length:	198 mm
Width:	198 mm
Height/Depth:	38 mm
Max. System performance:	3.20 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	170 lm
Luminous flux in standby mode:	170 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK08
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Ceiling mounting
Housing material:	Aluminium
Suitable for Type of marking:	other
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	13 to 15 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Power factor:	0.56
Type of wiring:	suitable for through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
