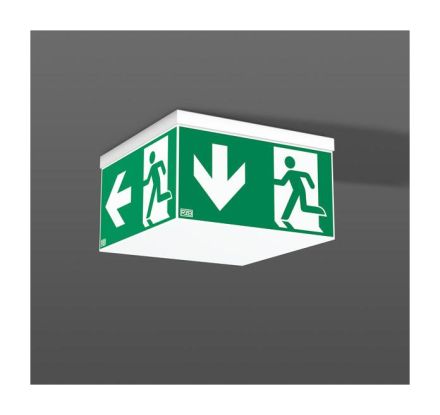

RZB 672299.002.89 Signcube 4x1.8W LED emergency light

RZB 672299.002.89 Signcube 4x1.8W LED emergency light

In stock

SKU: 532906

Price on request

€262.74

€0

Overview

4 films included for escape route marking. Minimal installation effort. High-quality LED technology. Powder-coated metal bracket. Opal plastic cover (PMMA). Four films with escape signs included for escape route marking. With AC-Control monitoring module for Luxifair central battery systems. Can be used as a pendant light with accessories. Order mounting elements separately! Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC/DC
Detection range:	30 m
Color temperature:	6500 K
Length:	315 mm
Width:	315 mm
Height/Depth:	187 mm
Max. System performance:	6.90 W
Battery type:	other
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	Opal plastic
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Ceiling mounting
Housing material:	Steel
Suitable for marking type:	other
Feed-in:	central (central battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	4
Number of lamp heads:	1
LED nominal current at constant current:	42 to 45 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-5 to 25 °C
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
