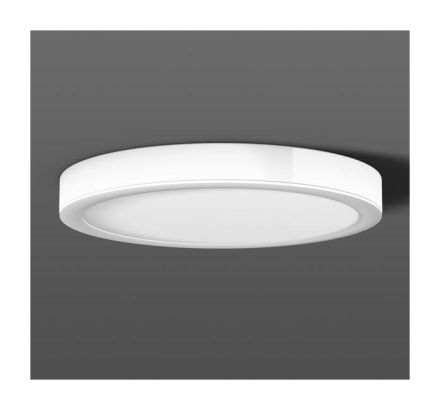

RZB 672352.002 Toledo Flat LE 3000K D:500mm H:63mm LED emergency light

RZB 672352.002 Toledo Flat LE 3000K D:500mm H:63mm LED emergency light

In stock

SKU: 535032

Price on request

€398.74

€0

Overview

Design continuity with general lighting. We offer a comprehensive product range in the area of emergency lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. LED service life 50,000 hours (L70, B10). Light guide and plastic diffuser made of non-yellowing PMMA. Also suitable for high ceilings. Easy to install. Large luminaire spacing for escape route lighting. Unobtrusive design. Cylindrical housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of microprismatic matt plastic. Control gear installed. Light source (LED) included in delivery. Single battery system with integrated self-test.

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC
Color temperature:	3000 K
Height/depth:	63 mm
Max. System performance:	38 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	3500 lm
Luminous flux in standby mode:	430 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK06
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	structured plastic
Outer diameter:	500 mm
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Steel
Suitable for marking type:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of bulbs:	1
Number of light heads:	1
LED nominal current at constant current:	158 to 173 mA
Light distributor:	other
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 to 35 °C
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
