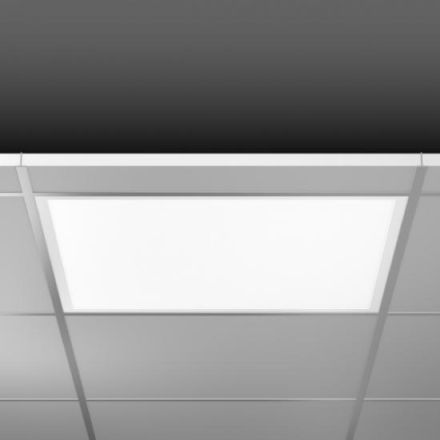

RZB 672356.002 Sidelite ECO 29W 3000K 595x595x37 3h LED emergency light

RZB 672356.002 Sidelite ECO 29W 3000K 595x595x37 3h LED emergency light

In stock

SKU: 533813

Price on request

€325.24

€0

Overview

Design continuity with general lighting. We offer a comprehensive product range in the area of emergency lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA plastic. LED service life 50,000 hours (L70, B10). Automatic self-test as standard. Low maintenance costs. Large luminaire spacing for escape route lighting. Energy efficiency class A++

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC
Color temperature:	3000 K
Length:	595 mm
Width:	595 mm
Max. system power:	29 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	3350 lm
Luminous flux in standby mode:	390 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	structured plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	built-in
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	121 to 132 mA
Light distributor:	other
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 30 °C
Power factor:	0.98
Installation height/depth:	160 mm
Type of Wiring:	suitable for through wiring
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
