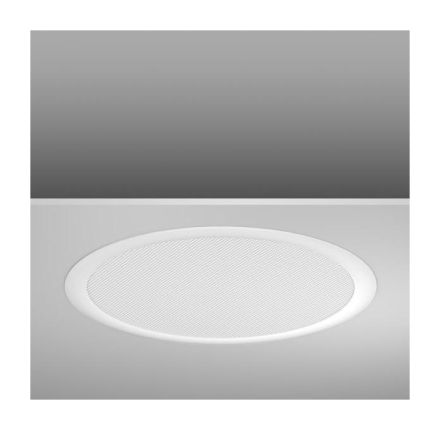

RZB 672379.002.89 Toledo Flat 3 3000K D:495mm with AC-Control LED emergency light

RZB 672379.002.89 Toledo Flat 3 3000K D:495mm with AC-Control LED emergency light

In stock

SKU: 535264

Price on request

€320.36

€0

Overview

Super-flat LED recessed downlight. For escape route lighting. Housing made of powder-coated die-cast aluminum. Light guide and diffuser made of non-yellowing PMMA, prismatic. Ceiling mounting with spring system. Including external operating device via plug connection, 250 mm connecting cable. Suitable for direct current - suitable for central emergency power supply. With AC-Control monitoring module for Luxifair central battery systems. Extremely simple installation of the operating device thanks to the twist-and-plug system.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	I
Voltage type:	AC/DC
Color temperature:	3000 K
Height/depth:	6 mm
Max. System performance:	31 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	3450 lm
Luminous flux in standby mode:	3450 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	470 mm
Cover material:	Structured plastic
Outer diameter:	495 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Built-in
Material of the housing:	Aluminium
Suitable for type of marking:	other
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of Lamp heads:	1
LED nominal current at constant current:	129 to 141 mA
Light distributor:	other
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 30 °C
Power factor:	0.95
Installation height/depth:	50 mm
Wiring type:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
