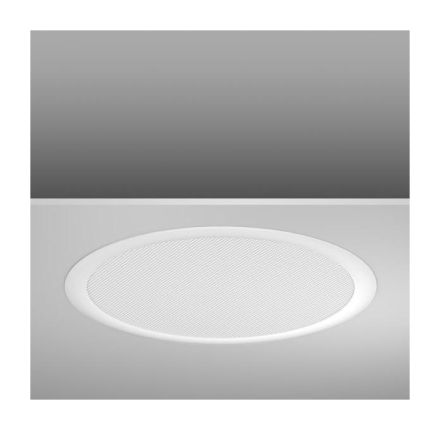

RZB 672383.002 Toledo Flat 3 LED emergency light

In stock

SKU: 533773

Price on request

€487.90

€0

Overview

Design continuity with general lighting. We offer a comprehensive product range in the field of safety lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Large luminaire spacing for escape route lighting. Very low maintenance costs thanks to automatic self-test. Super-flat LED recessed downlight. Light guide and plastic diffuser made of non-yellowing PMMA. LED service life 50,000 h (L70, B10). Simple spring fastening for tool-free installation. Suitable for direct covering with thermal insulation material (does not apply to diameter D 495 mm). Separate device box with plug connection. Die-cast aluminum housing, powder-coated. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of microprismatic, matt plastic. Ceiling fastening with spring system. Emergency light module including NiMh battery in a separate control gear housing. Control gear (LED converter) external via plug connection. With connecting cable between light and LED converter 300 mm. Single battery system with integrated self-test. Light source (LED) included in delivery.

Property	Value
Housing color:	white
Protection rating (IP):	IP54
Protection class:	I
Voltage type:	AC
Color temperature:	3000 K
Height/depth:	6 mm
Max. System performance:	30 W
Battery type:	NiMh
Nominal operating time:	8 h
Rated luminous flux according to IEC 62722-2-1:	3450 lm
Luminous flux in standby mode:	170 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	470 mm
Cover material:	Structured plastic
Outer diameter:	495 mm
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	built-in
Housing material:	aluminium
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	125 to 136 mA
Light distributor:	other
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 35 °C
Power factor:	0.90
Installation height/depth:	70 mm
Wiring type:	Termination
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
