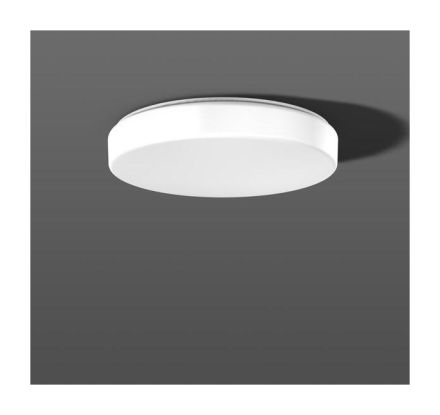

RZB 672387.002.1.04 Flat Polymero Circle 4000K D:515mm Multid LED emergency light

RZB 672387.002.1.04 Flat Polymero Circle 4000K D:515mm Multid LED emergency light

In stock

SKU: 535296

Price on request

€489.91

€0

Overview

Design continuity with general lighting. We offer a comprehensive product range in the area of emergency lighting and general lighting. This means we can offer our customers integrated solutions for all areas of application, depending on the building project. Design to match modern architecture. Compact design. Easy installation. Low maintenance costs. Powder-coated metal bracket. Cover secured with a snap fastener. Opal plastic cover (PMMA). Single battery system with integrated self-test and feedback to the RZB monitoring systems Multidigit, MWEBplus and S63. Status display on the luminaire. Light source (LED) included in delivery.

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Voltage type:	AC
Color temperature:	4000 K
Height/depth:	98 mm
Max. System performance:	24 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	2600 lm
Luminous flux in standby mode:	200 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
Outer diameter:	515 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Material of the housing:	Steel
Suitable for type of marking:	other
Feed-in:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	10
Number of Lamp heads:	1
LED nominal current at constant current:	100 to 109 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 °C
Power factor:	0.95
Type of Wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
