RZB 672392.002.6 Flat Polymero LED emergency light

RZB 672392.002.6 Flat Polymero LED emergency light

In stock

SKU: 897151

Price on request

€337.46

€0

Overview

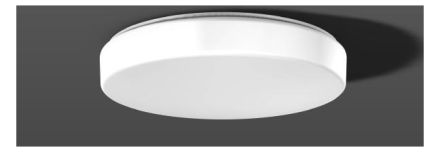

Decorative round surface-mounted light. For escape route lighting. Powder-coated metal fitting. Diffuser made of plastic (polycarbonate), opal, impact-resistant. Diffuser attached with patented locking technology (pressure lock). Suitable for ceiling mounting, wall mounting. Operating device suitable for direct current, suitable for central emergency power supply.

Property	Value
Housing colour:	white
Protection rating (IP):	IP40
Protection class:	I
Type of voltage:	AC/DC
Color temperature:	4000 K
Height/depth:	98 mm
Max. System performance:	23 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	2700 lm
Luminous flux in standby mode:	590 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
Outer diameter:	515 mm
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting/ceiling mounting
Material of the housing:	steel
Suitable for type of marking:	other
Feed-in:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	10
Number of lamp heads:	1
LED nominal current at Constant current:	96 to 105 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 35 °C
Power factor:	0.55
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
