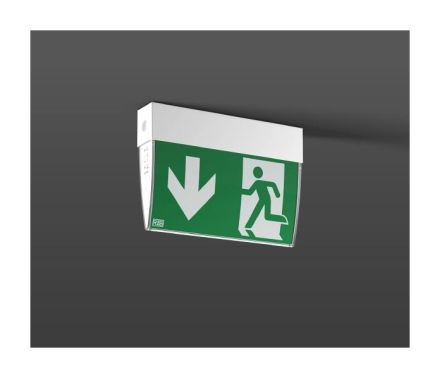

RZB 672400.002 Exeo D 4W 255x48x177 3h LED emergency light

RZB 672400.002 Exeo D 4W 255x48x177 3h LED emergency light

In stock

SKU: 722123

Price on request

€72.60

€0

Overview

Single battery safety lights for escape route marking. Plastic housing (polycarbonate), impact-resistant. 4 escape sign films and 1 white film for insertion into the transparent cover included. Mounting bracket for wall mounting and two sealing screws included. Single battery system with automatic self-test.

Property	Value
Housing color:	white
Protection type (IP):	IP54
Protection class:	II
Voltage type:	AC
Detection range:	24 m
Color temperature:	4000 K
Length:	255 mm
Width:	48 mm
Height/depth:	177 mm
Battery type:	other
Nominal operating time:	3 h
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting/ceiling mounting
Housing material:	Plastic
Suitable for marking type:	Insert sheet/plate
Feed:	decentralized (single battery)
Function:	Escape route marking
With pictogram:	yes
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	17 to 18 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 to 30 °C
Type of wiring:	suitable for through-wiring
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	Plug connection
