RZB 672401.002.4.07 Flat Polymero LED emergency light

In stock
SKU: 897133
€398.29
Into a basketIn the basketGo

Overview

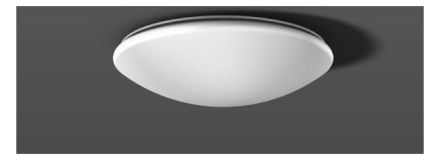

Decorative round surface-mounted light. For escape route lighting. Powder-coated metal fitting. Diffuser made of plastic (polycarbonate), opal, impact-resistant. Diffuser attached with patented locking technology (pressure lock). Suitable for ceiling mounting, wall mounting. Single battery system with automatic self-test and feedback via DALI bus exclusively to the RZB DALI monitoring system.

Property Value
Housing color: white
Protection type (IP): IP40
Protection class: I
Voltage type: AC
Color temperature: 4000 K
Height/depth: 120 mm
Max. System performance: 21 W
Battery type: NiMh
Nominal operating time: 3 h
Rated luminous flux according to IEC 62722-2-1: 2200 lm
Luminous flux in standby mode: 190 lm
Operating device: not required
Light source: LED not replaceable
Impact resistance: IK10
Socket: without
Rated voltage: 220 to 240 V
With remote switch connection: no
Cover material: opal plastic
Outer diameter: 460 mm
With light source: yes
Monitoring device: Monitoring module (centrally supplied system)
Mounting type: Wall mounting/ceiling mounting
Housing material: Steel
Suitable for marking type: other
Feed-in: decentralized (single battery)
Function: Escape route lighting
With pictogram: no
Suitable for number of bulbs: 1
Number of light heads: 1
LED nominal current at constant current: 88 to 95 mA
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: 25 °C
Type of wiring: suitable for through-wiring
Number of poles: 6
Conductor cross-section: 2.50 mm²
Connection type: Plug connection

Characteristics

HABFlat Polymer 672401.002.4.07
ManufacturerRZB
HAN672401.002.4.07
GTIN4051859718871
Connection typePlug connection
Type of wiringSuitable for through wiring
Outer diameter460 mm
Rated luminous flux according to IEC 62722-2-12200lm
Rated ambient temperature according to IEC62722-2-125°C
Operating deviceNot required
Color temperature4000K
VersionWithout
FunctionEscape route lighting
Suitable for number of lamps1
Housing colorWhite
Height/Depth120 mm
LED nominal current at constant current88 to 95 mA
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light distributorWithout
Max. system performance21 W
With light sourceYes
Mounting typeWall mounting/ceiling mounting
Nominal voltage220 to 240 V
Number of poles6
Impact resistanceIK10
IP protection)IP40
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialSteel
