RZB 672421.002.2.89 Flat Polymero LED emergency light

RZB 672421.002.2.89 Flat Polymero LED emergency light

In stock

SKU: 897135

Price on request

€372.15

€0

Overview

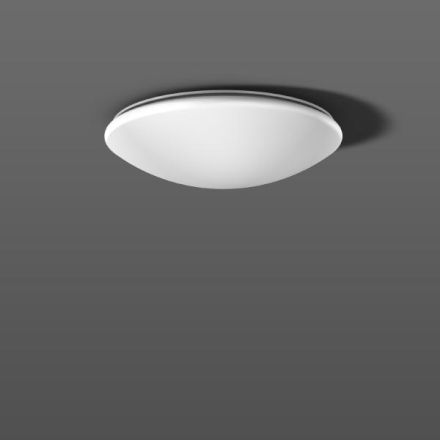

Decorative round surface-mounted light. For escape route lighting. Powder-coated metal fitting. Diffuser made of plastic (polycarbonate), opal, impact-resistant. Diffuser attached with patented locking technology (pressure lock). Suitable for ceiling mounting, wall mounting. Control gear integrated. For connection to safety power supply. With AC-Control monitoring module for Luxifair central battery systems.

Property	Value
Housing color:	white
Protection rating (IP):	IP40
Protection class:	I
Type of voltage:	AC/DC
Color temperature:	3000 K
Height/depth:	120 mm
Max. System performance:	30 W
Battery quality:	other
Rated luminous flux according to IEC 62722-2-1:	2800 lm
Luminous flux in standby mode:	700 lm
Operating device:	not required
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Cover material:	opal plastic
Outer diameter:	460 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Material of the housing:	steel
Suitable for type of marking:	other
Feed-in:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	125 to 136 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 to 25 °C
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
