RZB 672526.003 Lucio LED/0.3W-4000 LED emergency light

In stock

SKU: 943621

Price on request

€157.95

€0

Overview

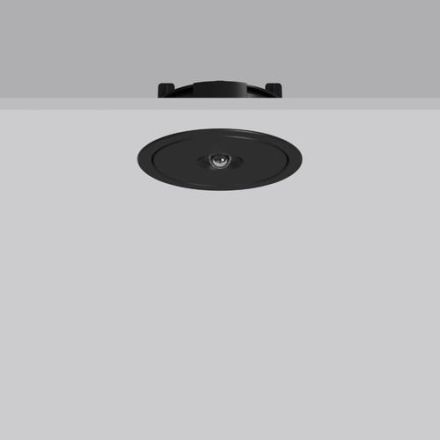

Lucio LED/0.3W-4000 LED emergency light

Feature	Value
Housing color:	black
Protection rating (IP):	IP20
Protection class:	II
Voltage type:	AC
Nominal voltage:	230 V
Color temperature:	4000 K
Height/depth:	2 mm
Max. System performance:	3.10 W
Battery type:	other
Nominal operating time:	3 to 8 h
Luminous flux in standby mode:	240 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK06
Socket:	without
With remote switch connection:	no
Installation diameter:	116 mm
Cover material:	other
Outer diameter:	135 mm
Monitoring device:	automatic self-test
Mounting type:	structure/installation
Housing material:	plastic
Suitable for marking type:	other
Feed:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of light sources:	1
Number of lamp heads:	1
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Power factor:	0.15
Type of wiring:	suitable for through wiring
Number of poles:	2
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
With remote control:	no
Replaceable control gear:	yes
Max. number of lights circuit breaker B16:	40
Max. number of lights circuit breaker C16:	40
Constant luminous flux control:	no
