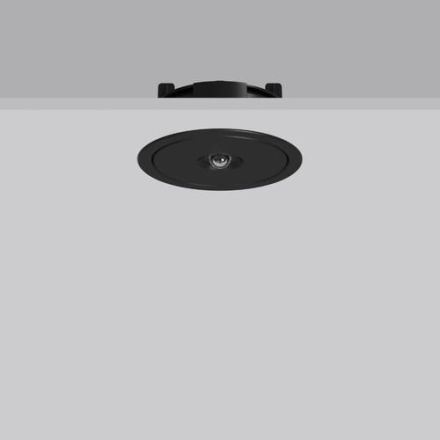

RZB 672528.003 Lucio LED/4.6W-4000 LED emergency light

In stock
SKU: 943623
€111.65
Into a basketIn the basketGo

Overview

Lucio LED/4.6W-4000 LED emergency light

Feature Value
Housing color: black
Protection rating (IP): IP20
Protection class: II
Voltage type: AC/DC
Nominal voltage: 230 V
Color temperature: 4000 K
Height/depth: 2 mm
Battery properties: other
Luminous flux in standby mode: 310 lm
Operating device: EVG
Light source: LED not replaceable
Impact resistance: IK06
Socket: without
With remote switch connection: no
Installation diameter: 116 mm
Cover material: other
Outer diameter: 135 mm
Monitoring device: without
Mounting type: structure/installation
Housing material: plastic
Suitable for marking type: other
Feed-in: central (central battery)
Function: Escape route lighting
With pictogram: no
Suitable for number of light sources: 1
Number of lamp heads: 1
Light distributor: without
Protection class (NEMA): other
Luminaire with limited surface temperature D-mark according to EN 60598-2-24: no
Rated ambient temperature according to IEC 62722-2-1: 25 °C
Power factor: 0.58
Type of wiring: suitable for through wiring
Number of poles: 2
Conductor cross-section: 2.50 mm²
Connection type: plug connection
With remote control: no
Replaceable operating device: yes
Max. Number of lights circuit breaker B16: 40
Max. number of lights circuit breaker C16: 40
Constant luminous flux control: no

Characteristics

HAB672528.003 Lucio LED/4,6W-4000
ManufacturerRZB
HAN672528.003
GTIN4051859769675
Connection typePlug connection
Type of wiringSuitable for through wiring
Replaceable operating deviceYes
Outer diameter135 mm
Rated ambient temperature according to IEC 62722-2-125°C
Operating deviceElectronic ballast
Installation diameter116 mm
Color temperature4000K
VersionWithout
FunctionEscape route lighting
Suitable for number of light sources1
Housing colorBlack
Height/Depth2 mm
Constant luminous flux controlNo
Power factor0.58
Conductor cross-section2.50 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
LampsLED not replaceable
Light distributorWithout
Max. number of luminaires Circuit breaker B1640
Max. number of luminaires Circuit breaker C1640
With remoteNo
Mounting typeConstruction/Installation
Nominal voltage230V
Number of poles2
Impact resistanceIK06
IP protection)IP20
Protection class (NEMA)Other
Protection classII
Voltage typeAC/DC
Cover materialOther
Housing materialPlastic
