RZB 672534.002.89 Wall Ceiling GSUN LED emergency light

RZB 672534.002.89 Wall Ceiling GSUN LED emergency light

In stock

SKU: 942577

Price on request

€207.72

€0

Overview

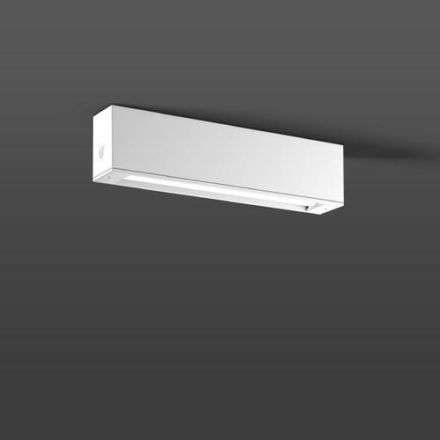

Rectangular surface-mounted light in a classic design. For escape route lighting. Plastic housing (polycarbonate). Suitable for ceiling mounting, chain or rope pendant, wall mounting. Also possible as a pendant light with accessories. Control gear integrated. For connection to emergency power supply. With AC-Control monitoring module for Luxifair central battery systems.

Property	Value
Housing color:	white
Protection type (IP):	IP54
Protection class:	II
Type of voltage:	AC/DC
Color temperature:	4000 K
Length:	336 mm
Width:	56 mm
Height/Depth:	75 mm
Max. System performance:	6.70 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	710 lm
Luminous flux in standby mode:	710 lm
Operating device:	EVG
Light source:	LED not replaceable
Impact resistance:	IK06
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Wall mounting/ceiling mounting
Feed-in:	central (central battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	28 to 30 mA
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-10 up to 45 °C
Power factor:	0.83
Wiring type:	Termination
Number of poles:	4
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
