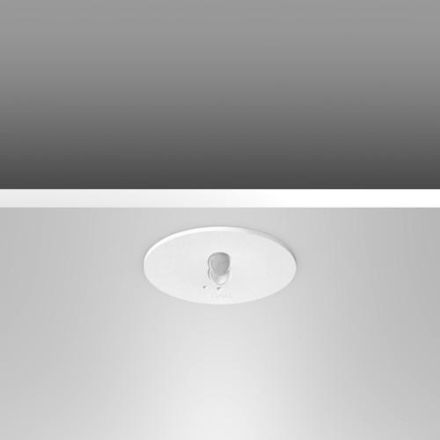

RZB 672572.002 Solyxx 1W-6400K D50 B3h LED emergency light

RZB 672572.002 Solyxx 1W-6400K D50 B3h LED emergency light

In stock

SKU: 897056

Price on request

€79.50

€0

Overview

Round safety light for escape route lighting. Plastic housing. White plastic cover ring. With plastic lenses for area lighting. With plastic lenses for escape route lighting. Single battery system with automatic self-test.

Property	Value
Housing color:	white
Protection rating (IP):	IP20
Protection class:	II
Type of voltage:	AC
Color temperature:	6400 K
Height/depth:	4 mm
Max. System performance:	1.20 W
Battery type:	other
Nominal operating time:	3 h
Luminous flux in standby mode:	130 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	42 mm
Cover material:	transparent plastic
Outer diameter:	50 mm
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Installation
Material of the housing:	Plastic
Supply:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	5 mA
Light distributor:	without
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	5 to 45 °C
Power factor:	0.34
Installation height/depth:	150 mm
Type of wiring:	Termination
Number of poles:	2
Conductor cross-section:	1.50 mm²
Connection type:	unassembled connection cable
