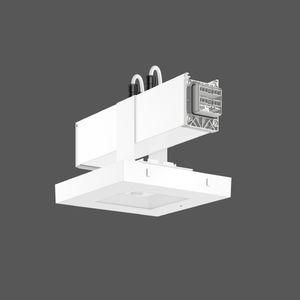

RZB 9503RT.762.400.100 Pendant light LINEDO 5.7W 6500K LED emergency light

RZB 9503RT.762.400.100 Pendant light LINEDO 5.7W 6500K LED emergency light

In stock

SKU: 836031

Price on request

€372.22

€0

Overview

Module including safety light for escape route lighting. System profile made of extruded aluminum profile, powder-coated. Cover made of aluminum, surface same as system profile. Safety light attached to system profile using a bracket. Light made of die-cast aluminum, powder-coated white. Cover made of plastic (polycarbonate). Bracket made of sheet steel, powder-coated. With deep-beam plastic lenses for escape route lighting. Simple and tool-free installation of system profiles using separate accessories for rope or chain suspension. Can be plugged in without tools and secured by a mechanical connector. 2.5 m connection cable for flexible positioning of the safety light on the system profile. 14-pin LINEDO plug (5 x 2.5 mm² / 9 x 1.5 mm²) for through-wiring and connection option to emergency lighting circuit (1/2). Please order feed-in module, connection and mounting accessories separately.

Property	Value
Suitable for number of lamps:	1
Rated luminous flux according to IEC 62722-2-1:	420 lm
Color temperature:	6500 K
With lamp:	yes
Operating device:	LED operating device, current-controlled
Length:	330 mm
Width:	198 mm
Height/depth:	170 mm
Protection rating (IP):	IP54
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	yes
Housing material:	aluminum
Housing color:	white
Color rendering index CRI:	70-79
With operating device:	yes
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	24 to 26 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Beam angle:	free-beaming/diffuse
Suitable for lamp power:	5.70 W
Max. system power:	5.70 W
Power factor:	0.56
Type of wiring:	with through-wiring
Number of poles:	14
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABPendant light LINEDO 5,7W 6500K

Manufacturer

HAN9503RT.762.400.100

GTIN4051859681151

Connection typePlug-in terminal

Type of wiringWith through wiring

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-1420lm

Operating deviceLED control gear current controlled

Width198 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6500K

Color rendering index CRI70-79

VersionWithout

Suitable for lamp power5.70W

Suitable for number of lamps1

Suitable for emergency lightingYes

Housing colorWhite

Height/Depth170 mm

LED nominal current at constant current24 to 26 mA

Power factor0.56

Conductor cross-section2.50 mm²

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributionSymmetrical

Length330 mm

Max. system performance5.70W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles14

IP protection)IP54

Protection classI

Voltage typeAC/DC

Housing materialAluminum
