RZB Deecos E 10W 1050lm 840 ws N:1050lm LED emergency light

RZB Deecos E 10W 1050lm 840 ws N:1050lm LED emergency light

In stock

SKU: 844956

Price on request

€299.83

€0

Overview

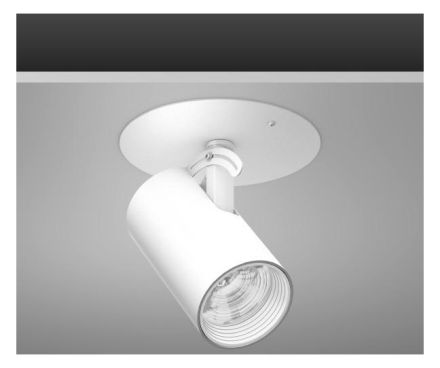

LED recessed spotlight for illuminating areas that need to be highlighted. Housing made of powder-coated extruded aluminum profile. Spotlight can be rotated 340° horizontally and pivoted 80° vertically. Alignment of spotlight head can be locked. Optical assembly with plastic (polycarbonate) lens that can be changed without tools for the best homogeneity of the light cone. Tool-free installation thanks to spring fastening. Includes external operating device via plug connection, 250 mm connecting cable. For connection to safety power supply. With AC-Control monitoring module for Luxifair central battery systems.

Property	Value
Housing color:	white
Protection rating (IP):	IP20
Protection class:	I
Type of voltage:	AC/DC
Color temperature:	4000 K
Height/depth:	177 mm
Max. System performance:	10 W
Battery properties:	other
Rated luminous flux according to IEC 62722-2-1:	1050 lm
Luminous flux in standby mode:	1050 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK06
Socket:	without
Nominal voltage:	220 to 240 V
With remote switch connection:	no
Installation diameter:	160 mm
Outer diameter:	168 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Installation
Suitable for marking type:	other
Feed:	central (central battery)
Function:	escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	42 to 45 mA
Light diffuser:	Focus lens
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Power factor:	0.95
Installation height/depth:	125 mm
Wiring type:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
