RZB Deecos E 12W 1050lm 830 ws 3h N:500lm LED emergency light

RZB Deecos E 12W 1050lm 830 ws 3h N:500lm LED emergency light

In stock

SKU: 844958

Price on request

€407.80

€0

Overview

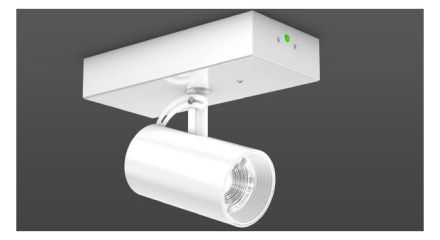

LED surface-mounted spotlight for illuminating areas that need to be highlighted. Housing made of powder-coated extruded aluminum profile. Spotlight can be rotated 340° horizontally and pivoted 80° vertically. Alignment of spotlight head can be locked. Optical assembly with plastic (polycarbonate) lens that can be changed without tools for the best homogeneity of the light cone. Suitable for ceiling and wall mounting. Control gear integrated. Single battery system with automatic self-test and feedback via DALI bus exclusively to the RZB DALI monitoring system.

Property	Value
Housing color:	white
Protection type (IP):	IP20
Protection class:	I
Voltage type:	AC
Color temperature:	3000 K
Length:	258 mm
Width:	121 mm
Height/Depth:	225 mm
Max. System performance:	12 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	1050 lm
Luminous flux in standby mode:	500 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	without
Rated voltage:	220 to 240 V
With remote switch connection:	no
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Ceiling mounting
Suitable for marking type:	other
Feed:	decentralized (single battery)
Function:	Escape route lighting
With pictogram:	no
Suitable for number of lamps:	1
Number of lamp heads:	1
LED nominal current at constant current:	50 to 55 mA
Light distributor:	Focus lens
Protection class (NEMA):	other
Luminaire with limited surface temperature 'D-mark':	no
Rated ambient temperature according to IEC62722-2-1:	25 to 40 °C
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	6
Conductor cross-section:	2.50 mm²
Connection type:	Plug connection
