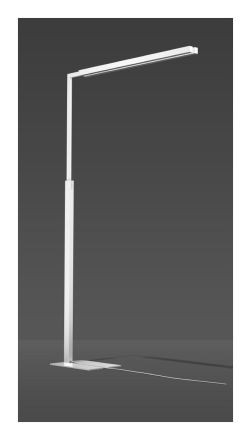

RZB 312248.002.19 Less is more 27 90W 3000K H2 LED floor lamp

In stock
SKU: 532078
€1,432.54
Into a basketIn the basketGo

Overview

LED floor lamps for single and double workstations. Versions with intelligent presence control and brightness sensors. Version with asymmetrical light characteristics for high uniformity in the workplace. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Extremely narrow lamp head. Integrated operating device. Direct and indirect light output. LED service life 60,000 h (L80, B10). Color tolerance: 3-fold MacAdam (3 SDCM). Flush-mounted membrane button for operation. Versions with a wide opening in the base plate especially for double workstations. LED floor lamp for single and double workstations. With integrated presence control and brightness sensors. Direct and indirect light components can be switched together with a membrane button. Operating device built into the standpipe. Beam characteristics direct 60% / indirect 40%. Light control directly via glossy aluminum micro grid. Screen-compatible in accordance with EN 12464-1. Light is directed indirectly via a diffuser made of non-yellowing plastic (PMMA), satin-finished. Flat base plate made of steel for high stability and space-saving positioning on office furniture. Base plate with narrow opening 35 mm. Head and column made of aluminum. Powder-coated lamp. Membrane button integrated into the lamp column for optimal ergonomics. Light source (LED) included. With connecting cable 0.75 mm 2000 mm black including protective contact plug. Dimensions of lamp head (2x): 1013 mm x 37 mm x 28 mm Height of lamp (top edge of lamp): 2033 mm Energy efficiency class A+

no
Feature Value
Max. System power: 92 W
Color temperature: 3000 K
With light source: yes
Length: 1170 mm
Width: 300 mm
Suitable for number of light sources: 1
With dimmer: no
Light source: LED not replaceable
Light distribution: symmetrical
Protection class: I
With motion detector: yes
Light emission: direct/indirect
Suitable for computer workstations in accordance with EN 12464-1: yes
Socket: without
Nominal voltage: 220 to 240 V
Number of lamp heads: 1
Operating device: LED operating device, current-controlled
With operating device: yes
Movable lamp heads: no
Housing color: white
Direct/indirect components separately adjustable: no
With separate reading light: no
Adjustable: no
With switch: no
Material: Aluminium
Material of the cover: other
With reflector: no
With presence detector: yes
With light sensor: no
Type of voltage: AC
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX: no
Dimming DSI: no
Dimming potentiometer (device integrated):
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: yes
Dimming Mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Light distributor: other
Rated service life L80/B10 at 25 °C: 60000 h
Suitable for lamp power: 92 W
Rated luminous flux according to IEC 62722-2-1: 8650 lm
Light color: white
Color rendering index CRI: 80-89
Height/depth: 2033 mm

Characteristics

With switchNo
HABLess is more 27 90W 3000K H2
ManufacturerRZB
HAN312248.002.19
GTIN4051859251408
Rated lifetime L80/B10 at 25 °C60000 hours
Rated luminous flux according to IEC 62722-2-18650lm
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1Yes
Width300 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificYes
Dimming with push buttonNo
Dimming programmableNo
Direct/indirect components can be controlled separatelyNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for lamp power92W
Suitable for number of lamps1
Housing colorWhite
Height/Depth2033 mm
AdjustableNo
LampsLED not replaceable
Light emissionDirect/indirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Length1170 mm
Max. system performance92W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Without dimming functionNo
Protection classI
Voltage typeAC
MaterialAluminum
Cover materialOther
