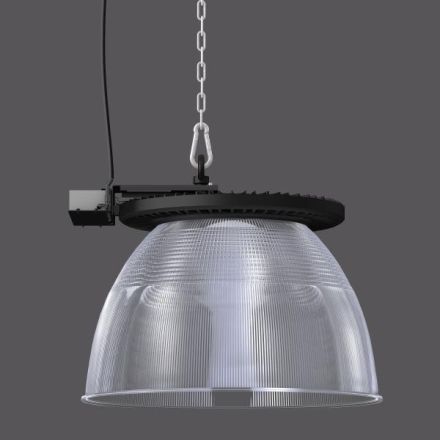

RZB 921.506.003 150W 4000K LED high bay light

In stock

SKU: 531811

Price on request

€605.79

€0

Overview

Compact and flat high bay luminaire. High protection class IP65. LED service life 50,000 h (L70, B10) at ambient temperature Ta 60°C. LED service life 35,000 h (L70, B10) at ambient temperature Ta 65°C. Anti-reflective toughened safety glass (ESG). Operating range -10°C to +65°C. Luminaires with limited surface temperature according to DINEN60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Simple installation thanks to one-point suspension. Suitable for use in the food and beverage industry. Housing made of powder-coated die-cast aluminum. With ring eyelet for on-site rope or chain suspension. Passive cooling. Cover made of clear safety glass (ESG). Primary light control with high-performance surface LEDs. Refractor plastic (PMMA) clear external prismatic. Energy efficiency class A+

Property	Value
Max. System power:	148 W
Rated luminous flux according to IEC 62722-2-1:	18000 lm
Protection class:	I
Impact resistance:	IK03
Protection class (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Length:	590 mm
Width:	570 mm
Height/depth:	415 mm
Socket:	other
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	230 V
Beam angle:	wide beam 41-80°
DALI dimming:	no
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
Mounting type:	Pendant
With protective cover:	yes
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	617 to 673 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Refractor lens
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-10 to 65 °C
Suitable for lamp power:	148 W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	other

Characteristics

HAB150W 4000K

Manufacturer

HAN921.506.003

GTIN4051859249870

Connection typeOther

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-118000lm

Rated ambient temperature according to IEC62722-2-1-10 to 65 °C

Operating deviceLED control gear current controlled

Width570 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for lamp power148W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth415 mm

LED nominal current at constant current617 to 673 mA

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorRefractor lens

Light distributionSymmetrical

Length590 mm

Max. system performance148W

With operating deviceYes

With light sourceYes

With protective coverYes

Mounting typePendulum

Nominal voltage230V

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
