RZB 921496.003.2.76 Industrial Hall 250W 5000 LED high bay light

RZB 921496.003.2.76 Industrial Hall 250W 5000 LED high bay light

In stock

SKU: 531951

Price on request

€856.73

€0

Overview

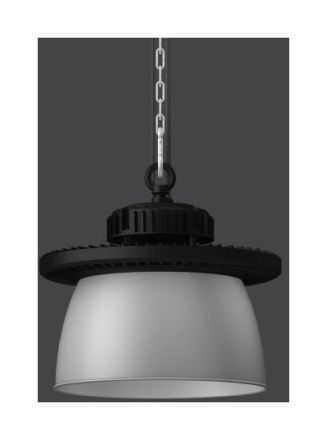

Compact and flat high bay luminaire. High protection class IP65. 1:1 replacement for HME, / HIE, and HSE equipment. Luminaire luminous efficacy up to 130 lm/W. LED service life 50,000 h (L70, B10). Glare limitation through accessories with reflector (UGR 22) and refractor (UGR 19.8 to 14.4). Anti-reflective toughened safety glass (ESG). Operating range - 20°C to + 40°C. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Energy savings of up to 70%. Easy installation thanks to one-point suspension. Suitable for use in the food and beverage industry. Housing made of die-cast aluminum, powder-coated. With ring eyelet for on-site rope or chain suspension. Passive cooling. Cover made of clear safety glass (ESG). Primary light control with high-performance surface LEDs. Reflector made of matt aluminum. Energy efficiency class A+

Property	Value
Max. System power:	252 W
Rated luminous flux according to IEC 62722-2-1:	26700 lm
Protection class:	I
Impact resistance:	IK07
Protection class (IP):	IP65
Housing color:	black
Color temperature:	5000 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Height/depth:	399 mm
Socket:	without
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	230 to 240 V
Beam angle:	extremely wide beam >80°
Dimming DALI:	yes
Light color:	white
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	Aluminum
Mounting type:	Pendant
With protective cover:	yes
Reflector:	matt
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	1050 to 1096 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Di mming phase control:	no
dimming phase control:	no
dimming potentiometer (integrated into the device):	no
dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-40 to 40 °C
Suitable for lamp power:	252 W
Power factor:	0.95
Outer diameter:	430 mm
Type of wiring:	Termination
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	other

Characteristics

HABIndustrial Hall 250W 5000

Manufacturer

HAN921496.003.2.76

GTIN4051859259060

Connection typeOther

Type of wiringDiploma

Outer diameter430 mm

Rated luminous flux according to IEC 62722-2-126700lm

Rated ambient temperature according to IEC62722-2-1-40 to 40 °C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature5000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power252W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth399 mm

LED nominal current at constant current1050 to 1096 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Max. system performance252W

With operating deviceYes

With light sourceYes

With protective coverYes

Mounting typePendulum

Nominal voltage230 to 240 V

Without dimming functionNo

Number of poles5

ReflectorFrosted

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
