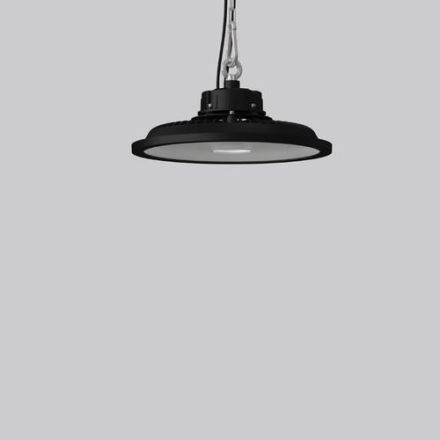

HABIndustrial Hall EVO LED112W-4
HAN921533.003.76
GTIN4051859515029
Connection typeOther
Type of wiringDiploma
Beam angleWide beam 41-80°
Replaceable operating deviceYes
Outer diameter380 mm
Rated ambient temperature according to IEC 62722-2-125°C
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for number of light sources1
Suitable for lamp power112W
Suitable for emergency lightingNo
Housing colorBlack
Glow wire test according to IEC 60695-2-11850 °C - 30 s
Height/Depth150 mm
Constant luminous flux controlNo
Power factor0.97
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes
LampsLED not replaceable
Light colorWhite
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %
Light distributorWithout
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B167
Max. number of luminaires Circuit breaker C1612
Max. system performance112W
With operating deviceYes
With light sourceYes
With protective coverNo
Mounting typePendulum
Nominal voltage220 to 240 V
Rated current467 to 509 mA
Emergency power supply integratedNo
Without dimming functionNo
Number of poles5
ReflectorWithout
Impact resistanceIK05
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Housing materialPlastic
