RZB 921678.003 HB 720 145W 4000K D320 H1 LED high bay light

RZB 921678.003 HB 720 145W 4000K D320 H1 LED high bay light

In stock

SKU: 805133

Price on request

€153.79

€0

Overview

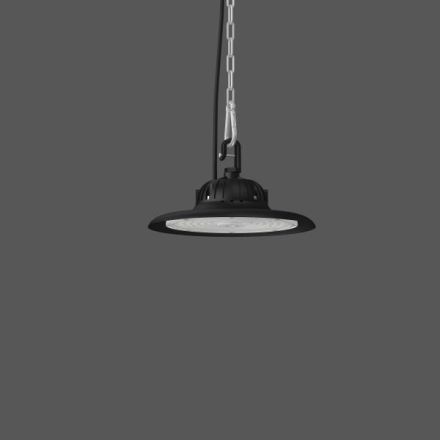

Flat, round high bay spotlight for chain or cable suspension. Housing made of powder-coated die-cast aluminum. Diffuser made of plastic (polycarbonate), impact-resistant. Simple installation thanks to one-point suspension. Pendant suspension via chain or steel cable provided by the customer. With 3-pole connecting cable (300 mm). Luminaires with limited surface temperature in accordance with DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected.

Dimming phase control:

Property	Value
Max. System power:	145 W
Rated luminous flux according to IEC 62722-2-1:	20000 lm
Protection class:	I
Impact resistance:	IK07
Protection class (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Height/depth:	105 mm
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	220 to 240 V
Beam angle:	wide beam 41-80°
DALI dimming:	no
Light color:	white
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
Mounting type:	pendant
With protective cover:	no
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	604 to 659 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming phase section:	no
no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Rated service life L70/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-30 to 45 °C
Suitable for lamp power:	145 W
Power factor:	0.90
Outer diameter:	320 mm
Wiring type:	Termination
Connection type:	other

Characteristics

HABH7 120W 4000K D320 H1

Manufacturer

HAN921678.003

GTIN4051859658726

Connection typeOther

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter320 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-120000lm

Rated ambient temperature according to IEC62722-2-1-30 to 45 °C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

Suitable for lamp power145W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorBlack

Height/Depth105 mm

LED nominal current at constant current604 to 659 mA

Power factor0.90

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance145W

With operating deviceYes

With light sourceYes

With protective coverNo

Mounting typePendulum

Nominal voltage220 to 240 V

Without dimming functionYes

ReflectorWithout

Impact resistanceIK07

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
