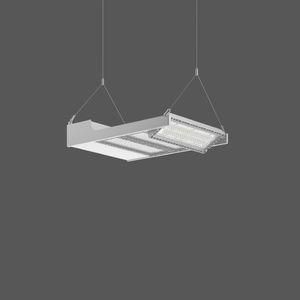

RZB 921683.004.1.76 Light Case 3x60W 6500K LED high bay light

RZB 921683.004.1.76 Light Case 3x60W 6500K LED high bay light

In stock

SKU: 836181

Price on request

€754.03

€0

Overview

Flat hall spotlight for chain or cable suspension with 3 pivoting LED modules. Housing made of die-cast aluminum and powder-coated sheet steel. Optimized thermal management thanks to special luminaire design. Self-cleaning heat sink for constant heat dissipation. Plastic cover (polycarbonate, impact-resistant) with integrated four-row lens system. LED modules can be pivoted ± 30° for optimal illumination. CLO control for consistent light output over the entire service life. Pendant suspension via chain or steel cable provided by the customer. With 5-pin connecting cable (1.5 m). On request with integrated motion detector and light sensor for daylight control. Ball-proof according to DIN 18032-03 (except pendant suspension via steel cable). Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. DALI operating device suitable for direct current, suitable for central emergency power supply.

d>no

Property	Value
Max. System power:	168 W
Rated luminous flux according to IEC 62722-2-1:	26000 lm
Protection class:	I
Impact resistance:	IK05
Protection class (IP):	IP65
Housing color:	Silver
Color temperature:	6500 K
Suitable for number of bulbs:	3
Light source:	LED not replaceable
Length:	544 mm
Width:	397 mm
Height/depth:	110 mm
Socket:	without
With light source:	yes
Operating device:	LED operating device current-controlled
Nominal voltage:	220 to 240 V
Beam angle:	free beam/diffuse
DALI dimming:	yes
Light colour:	white
With operating device:	yes
Voltage type:	AC/DC
Suitable for emergency lighting:	no
Housing material:	Aluminium
With Protective cover:	no
Reflector:	without
Ball-proof:	yes
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	700 to 764 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:
Dimming of leading edge:	no
Dimming of leading edge:	no
Dimming of potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Diffuser lens/optics/panel
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 55 °C
Suitable for lamp power:	168 W
Power factor:	0.90
Wiring type:	Termination
Connection type:	other

Characteristics

HABLightCase 3x60W 6500K

Manufacturer

HAN921683.004.1.76

GTIN4051859699705

Connection typeOther

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-126000lm

Rated ambient temperature according to IEC62722-2-1-30 to 55 °C

Operating deviceLED control gear current controlled

Width397 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature6500K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power168W

Suitable for number of lamps3

Suitable for emergency lightingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth110 mm

LED nominal current at constant current700 to 764 mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length544 mm

Max. system performance168W

With operating deviceYes

With light sourceYes

With protective coverNo

Nominal voltage220 to 240 V

Without dimming functionNo

ReflectorWithout

Impact resistanceIK05

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Housing materialAluminum
