RZB 921708.003.76 Industrial Hall 220W-4000K LED high bay light

RZB 921708.003.76 Industrial Hall 220W-4000K LED high bay light

In stock

SKU: 897867

Price on request

€634.97

€0

Overview

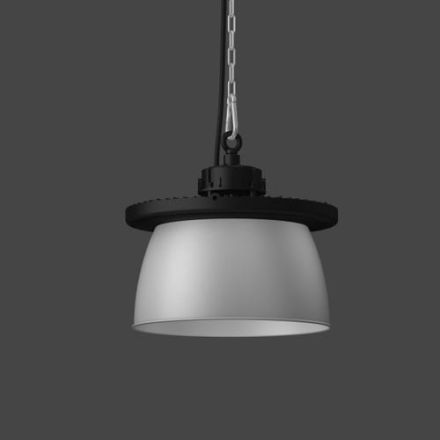

Round hall spotlight for chain or cable suspension. Robust housing made of die-cast aluminum with ring eyelet, powder-coated. Vertical cooling fins ensure constant heat dissipation and thus ensure optimal thermal management. Diffuser made of clear, anti-reflective single-pane safety glass (ESG). Reflector made of frosted aluminum. Primary light control with high-performance surface LED and reflector made of frosted aluminum to limit glare. Simple installation thanks to one-point suspension. Pendant suspension via chain or steel cable provided by the customer. With connecting cable (1.5 m). Dimming range 10% to 100%. Ceiling and wall mounting brackets available as accessories. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry.

Dimming phase control:

Property	Value
Max. System power:	220 W
Rated luminous flux according to IEC 62722-2-1:	31000 lm
Protection class:	I
Impact resistance:	IK08
Protection class (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Height/depth:	372 mm
Socket:	without
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	230 to 240 V
Beam angle:	extremely wide beam >80°
Dimming DALI:	yes
Light color:	white
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
With protective cover:	yes
Reflector:	matt
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	917 to 957 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming phase section:	no
no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Reflector
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Suitable for lamp power:	220 W
Power factor:	0.95
Outer diameter:	405 mm
Wiring type:	Termination
Connection type:	other

Characteristics

HABIndustrial Hall 220W-4000K

Manufacturer

HAN921708.003.76

GTIN4051859757368

Connection typeOther

Type of wiringDiploma

Outer diameter405 mm

Rated luminous flux according to IEC 62722-2-131000lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power220W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth372 mm

LED nominal current at constant current917 to 957 mA

Power factor0.95

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Max. system performance220W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage230 to 240 V

Without dimming functionNo

ReflectorFrosted

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
