Total harmonic distortion (THD)0.10

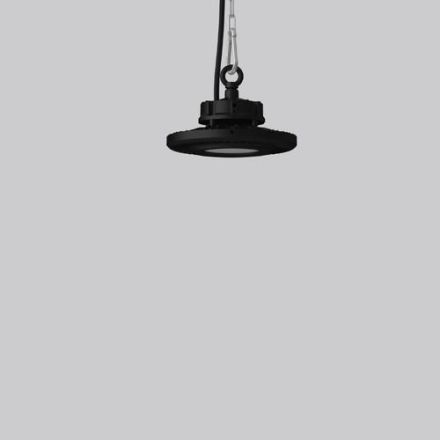

HAB921713.003 Industrial Hall LED/40W-4000K
HAN921713.003
GTIN4051859929987
Connection typeOther
Type of wiringDiploma
Beam angle adjustableNo
Replaceable operating deviceYes
Outer diameter248 mm
Rated ambient temperature according to IEC 62722-2-1-30 to 55 °C
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM4
Color temperature4000K
Color temperature adjustableNo
Color rendering index CRI80-89
VersionWithout
Suitable for number of light sources1
Suitable for lamp power40W
Suitable for emergency lightingNo
Housing colorBlack
Glow wire test according to IEC 60695-2-11960 °C - 30 s
Height/Depth167.50 mm
Constant luminous flux controlNo
Power factor0.95
Luminaire with limited surface temperature D-mark according to EN 60598-2-24Yes
LampsLED not replaceable
Light colorWhite
Luminous flux adjustableNo
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.80 %
Light distributorWithout
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B1616
Max. number of luminaires Circuit breaker C1627
Max. system performance40W
With operating deviceYes
With light sourceYes
With protective coverYes
Mounting typePendulum
Nominal voltage230 to 240 V
Rated current167 to 174 mA
Emergency power supply integratedNo
Without dimming functionYes
Number of poles3
ReflectorWithout
Impact resistanceIK09
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
Housing materialAluminum
