RZB Industrial Hall Midi 85W 12200lm 840 sw LED high bay light

RZB Industrial Hall Midi 85W 12200lm 840 sw LED high bay light

In stock

SKU: 844917

Price on request

€248.92

€0

Overview

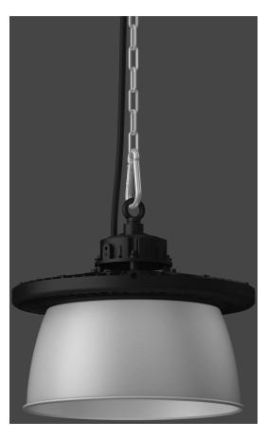

Round hall spotlight for chain or cable suspension. Robust housing made of die-cast aluminum with ring eyelet, powder-coated. Vertical cooling fins ensure constant heat dissipation and thus ensure optimal thermal management. Diffuser made of clear, anti-reflective single-pane safety glass (ESG). Reflector made of frosted aluminum. Primary light control with high-performance surface LED and reflector made of frosted aluminum to limit glare. Simple installation thanks to single-point suspension. Pendant suspension via chain or steel cable provided by the customer. With connecting cable (1.5 m). Ceiling and wall mounting brackets available as accessories. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry.

Dimming phase control:

Property	Value
Max. System power:	85 W
Rated luminous flux according to IEC 62722-2-1:	12200 lm
Protection class:	I
Impact resistance:	IK08
Protection class (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Suitable for number of bulbs:	1
Light source:	LED not replaceable
Height/depth:	318 mm
Socket:	without
With light source:	yes
Operating device:	LED operating device, current-controlled
Nominal voltage:	230 to 240 V
Beam angle:	extremely wide beam >80°
Dimming DALI:	no
Light color:	white
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	yes
Housing material:	aluminum
With protective cover:	yes
Reflector:	matt
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	354 to 370 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming phase section:	no
no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Suitable for lamp power:	85 W
Power factor:	0.95
Outer diameter:	360 mm
Wiring type:	Termination
Connection type:	other

Characteristics

HABIndustrial Hall Midi 85W 12200lm 840 sw

Manufacturer

HAN921701.003

GTIN4051859752875

Connection typeOther

Type of wiringDiploma

Outer diameter360 mm

Rated luminous flux according to IEC 62722-2-112200lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power85W

Suitable for number of lamps1

Suitable for emergency lightingYes

Housing colorBlack

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth318 mm

LED nominal current at constant current354 to 370 mA

Power factor0.95

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorReflector

Light distributionSymmetrical

Max. system performance85W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage230 to 240 V

Without dimming functionYes

ReflectorFrosted

Impact resistanceIK08

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
