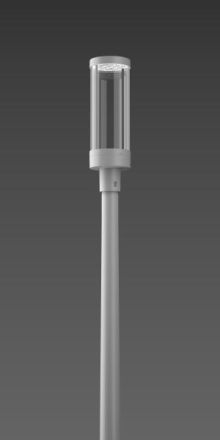

RZB 612269.004.Z1 Lupalo Scandia 66 9W-3000K LED mast light

In stock
SKU: 897973
€607.60
Into a basketIn the basketGo

Overview

Mast top light in classic lines with modern LED technology. Housing made of corrosion-resistant die-cast aluminum, powder-coated to be seawater-resistant. With stainless steel screws. With diaphragm valve as standard to prevent condensation. Clear glass cylinder. Multichip LED with high-performance refractor optics. Asymmetrical light distribution. Mast top for spigot ø 76 mm. With stainless steel screws. DALI-2 (D4i) control gear. 1 x Zhaga base (Book 18) at the top. Pre-assembled connection cable 2 x 0.75 mm², length 6 m. Please order reducer for mast spigot D 60 mm separately. Please order optional add-on roof separately.

Feature Value
Height/depth: 572 mm
Diameter: 187 mm
Suitable for number of bulbs: 1
Max. System power: 34 W
Rated luminous flux according to IEC 62722-2-1: 1550 lm
Color temperature: 3000 K
Suitable for spigot size: 76 mm
Nominal voltage: 220 to 240 V
Housing color: Silver
Operating device: LED operating device, current-controlled
With Light source: yes
Light source: LED not replaceable
Socket: without
Protection rating (IP): IP66
Protection class: II
Impact resistance: IK06
Mounting type: Attachment
Color rendering index CRI: 70-79
Voltage type: AC
With operating device: yes
Adjustable optics: no
Cover material: transparent glass
Housing material: aluminum
Remote control: without
Constant luminous flux control: no
Light color: white
With Connection cable: yes
With radio control: no
With program-controlled light control: no
Surface: powder-coated
LED nominal current at constant current: 58 to 64 mA
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: yes
DMX dimming: no
DSI dimming: no
Potentiometer dimming (integrated in the device): no
GPRS dimming: no
LineSwitch dimming: no
Manufacturer-specific dimming: no
Mains voltage modulation dimming: no
Dimming phase control: no
Dimming phase control: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: no
Rated service life L80/B10 at 25 °C: 100000 h
Protection class (NEMA): other
Light distributor: without
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: -20 to 40 °C
Suitable for lamp power: 14 to 34 W
Luminaire luminous efficacy: 111 lm/W
Power factor: 0.99
Type of wiring: suitable for through wiring
Number of poles: 4
Connection type: other

Characteristics

HABLupalo Scandia 66 9W-3000K
ManufacturerRZB
HAN612269.004.Z1
GTIN4051859679363
Connection typeOther
Type of wiringSuitable for through wiring
Rated lifetime L80/B10 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-11550lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceLED control gear current controlled
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Diameter187 mm
Color temperature3000K
Color rendering index CRI70-79
VersionWithout
Remote controlWithout
Suitable for lamp power14 to 34 W
Suitable for number of lamps1
Suitable for braid size76 mm
Housing colorSilver
Height/Depth572 mm
Constant luminous flux controlNo
LED nominal current at constant current58 to 64 mA
Power factor0.99
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy111lm/W
LampsLED not replaceable
Light colorWhite
Light distributorWithout
Max. system performance34W
With connection cableYes
With operating deviceYes
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeEssay
Nominal voltage220 to 240 V
SurfacePowder coated
Without dimming functionNo
Number of poles4
Impact resistanceIK06
IP protection)IP66
Protection class (NEMA)Other
Protection classII
Voltage typeAC
Cover materialGlass transparent
Housing materialAluminum
