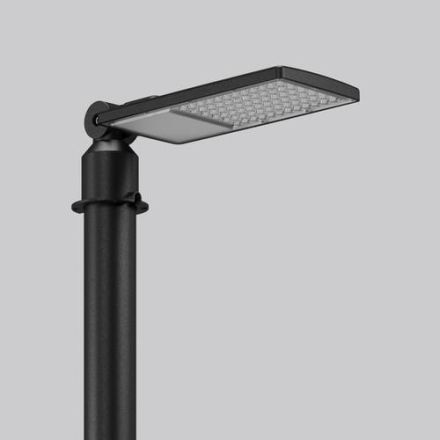

RZB 612323.0031 HB 610 AC-LED/100W-3000K 520x175x112 LED mast light

In stock
SKU: 943669
€123.83
Into a basketIn the basketGo

Overview

Functional mast-mounted and mast-top luminaire. Die-cast aluminum housing, powder-coated. One-piece multilayer lens cover. Wide beam light distribution. Universal mast top for mast top ø 42-76 mm and wall mounting. Angle of incidence can be adjusted and locked in 21, 25° increments. Replaceable mains voltage LED. Pre-wired with 500 mm connection cable. Please order reducer for mast top D 42 mm separately.

d>no
Property Value
Length: 520 mm
Width: 175 mm
Height/depth: 112 mm
Suitable for number of bulbs: 1
Max. System power: 101 W
Color temperature: 3000 K
Nominal voltage: 220 to 240 V
Housing color: anthracite
Operating device: not required
With light source: yes
Light source: LED not replaceable
Socket: without
Protection class (IP): IP65
Protection class: I
Impact resistance: IK06
Mounting type: Attachment
Color rendering index CRI: 80-89
Voltage type: AC
With operating device: no
Adjustable optics: no
Remote control: without
Constant luminous flux control: no
Light color: white
With connection cable: yes
With radio control: no
With program-controlled light control: no
Surface: powder-coated
LED nominal current at constant current: 421 to 459 mA
Dimming 0-10 V: no
Dimming 1-10 V: no
Dimming DALI: no
Dimming DMX:
Dimming DSI: no
Dimming potentiometer (device integrated): no
Dimming GPRS: no
Dimming LineSwitch: no
Dimming manufacturer-specific: no
Dimming mains voltage modulation: no
Dimming trailing edge: no
Dimming leading edge: no
Dimming programmable: no
Dimming RF: no
Dimming Sine Wave Reduction: no
Dimming Touch and Dim: no
Dimming Zigbee: no
Dimming with push button: no
Without dimming function: yes
Protection class (NEMA): other
Light distributor: without
Luminaire with limited surface temperature 'D-mark': no
Rated ambient temperature according to IEC62722-2-1: -20 to 40 °C
Suitable for lamp power: 101 W
Power factor: 0.98
Type of wiring: suitable for through wiring
Number of poles: 3
Conductor cross-section: 1.50 mm²
Connection type: Plug-in terminal

Characteristics

HABHB 610 AC-LED/100W-3000K 520x175x112
ManufacturerRZB
HAN612323.0031
GTIN4051859773474
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceNot required
Width175 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Remote controlWithout
Suitable for lamp power101 W
Suitable for number of lamps1
Housing colorAnthracite
Height/Depth112 mm
Constant luminous flux controlNo
LED nominal current at constant current421 to 459 mA
Power factor0.98
Conductor cross-section1.50 mm²
Luminaire with limited surface temperature D-markNo
LampsLED not replaceable
Light colorWhite
Light distributorWithout
Length520 mm
Max. system performance101 W
With connection cableYes
With operating deviceNo
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeEssay
Nominal voltage220 to 240 V
SurfacePowder coated
Without dimming functionYes
Number of poles3
Impact resistanceIK06
IP protection)IP65
Protection class (NEMA)Other
Protection classI
Voltage typeAC
