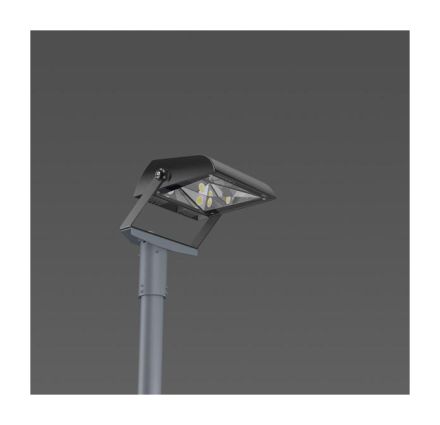

RZB 721719.1131.1 Lightstream 55W 4000K 315x2 LED mast light

RZB 721719.1131.1 Lightstream 55W 4000K 315x2 LED mast light

In stock

SKU: 532980

Price on request

€320.78

€0

Overview

Made in Germany. Housing made of corrosion-resistant die-cast aluminum for outdoor use, stainless steel bracket, powder-coated. Seawater-resistant coating. Asymmetrical reflector made of MIRO-SILVER with reflective coating. Asymmetrical flood light distribution without rearward scattered light. Fast device connection without access to the housing via screwless connectors with bayonet lock. COB LEDs with interchangeable socket, optional light color 830 or 840. The extensive mounting accessories for attachment to masts or walls are precisely tailored to the Lightstream family. Housing made of corrosion-resistant die-cast aluminum for outdoor use, powder-coated. Bracket made of stainless steel, powder-coated. Angle of attack adjustable with angle scale. Cover made of clear safety glass (ESG), ceramic coated. COB LEDs with interchangeable socket. Reflector made of MIRO-SILVER with 98% total light reflection. Asymmetrical light distribution. Supplied as standard with a diaphragm valve to prevent condensation. Quick device connection without having to access the housing via a connector with a bayonet lock. With plug-in connection terminal 3x maximum 2.5 mm. Suitable for a maximum cable diameter of d 13 mm. Energy efficiency class A++

d>no

Property	Value
Max. System power:	54 W
Rated luminous flux according to IEC 62722-2-1:	6200 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	315 mm
Width:	276 mm
Height/depth:	180 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Suitable for lamp power:	54 W
Beam angle:	free beam/diffuse
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	asymmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK04
Luminaire with limited surface temperature 'D-mark':	yes
Reflector:	other
Suitable for number of bulbs:	2
Luminous flux:	6200 lm
Cover material:	Transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light colour:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for truss mounting:	no
With Light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	225 to 245 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Protection class (NEMA):	other
Rated ambient temperature according to IEC62722-2-1:	-25 to 42 °C
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	3
Conductor cross section:	2.50 mm²
Connection type:	Plug-in terminal
Luminous efficacy:	115 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

HABLED Strip 5050 300cm 270Leds/m

Manufacturer

HAN721719.1131.1

GTIN4051859015857

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleFree-radiating/diffuse

Rated luminous flux according to IEC 62722-2-16200lm

Rated ambient temperature according to IEC62722-2-1-25 to 42 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width276 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for lamp power54W

Suitable for number of lamps2

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth180 mm

LED nominal current at constant current225 to 245 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux6200lm

Light distributorReflector

Light distributionAsymmetrical

Length315 mm

Max. system performance54W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorOther

Impact resistanceIK04

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialGlass transparent

Housing materialAluminum
