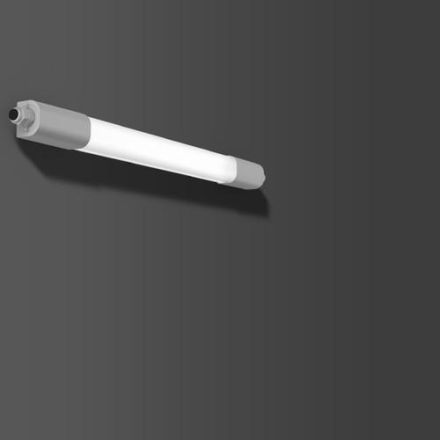

RZB 451210.009.76 Planox Eco 16W-4000K 852x61x50 PC DALI LED waterproof luminaire

RZB 451210.009.76 Planox Eco 16W-4000K 852x61x50 PC DALI LED waterproof luminaire

In stock

SKU: 897049

Price on request

€52

€0

Overview

Damp-proof luminaire with a slim and flat housing shape. Side parts made of gray plastic (polycarbonate), impact-resistant. Diffuser made of opal plastic (polycarbonate), impact-resistant. Diffuser extruded, internally prismatic and UV-resistant. Symmetrical light distribution. Homogeneous illumination. Rear light component for ceiling illumination. Flexible installation thanks to movable mounting brackets. Ideal for replacing luminaires. Ceiling mounting bracket made of stainless steel and triangle bracket for pendant mounting included in delivery. Control gear encapsulated, integrated and firmly connected to the diffuser and side part. Luminaire with integrated through-wiring for connecting additional luminaires in a row. Convenient cable entry via cable glands. Simple installation thanks to twist locks on both sides. Luminaires with limited surface temperature in accordance with DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry.

>no

Property	Value
Max. System power:	16 W
Suitable for number of lamps:	1
Length:	852 mm
Width:	61 mm
Height/depth:	50 mm
Protection type (IP):	IP66
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-30 to 45 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Cover material:	opal plastic
Light distributor:	other
Without dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	490 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	16 W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross section:	2.50 mm²

Characteristics

HABPlanox Eco 16W-4000K 852x61x50 PC DALI

Manufacturer

HAN451210.009.76

GTIN4051859775201

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C50000 hours

Rated ambient temperature according to IEC62722-2-1-30 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width61 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation length490 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power16W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth50 mm

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length852 mm

Max. system performance16W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles6

Impact resistanceIK08

IP protection)IP66

Protection class (NEMA)Other

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
