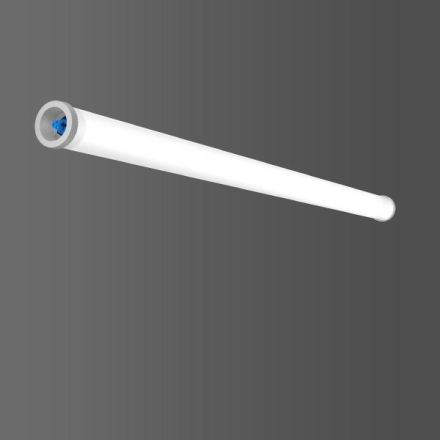

RZB 601072.002.1.730 Planox Tube 62W-4000K LED waterproof luminaire

RZB 601072.002.1.730 Planox Tube 62W-4000K LED waterproof luminaire

In stock

SKU: 897857

Price on request

€403.70

€0

Overview

Robust protective tube luminaire for high requirements. Equipment carrier made of sheet steel, white powder-coated. End caps made of plastic (polyamide) gray. Diffuser made of plastic (polycarbonate) opal, impact-resistant. Symmetrical light distribution. Homogeneous illumination. Suitable for wall, ceiling and pendant mounting thanks to accessories. Control gear integrated. Easy installation thanks to the Wieland RST® CLASSIC plug & play connector system. Luminaire with integrated through-wiring for connecting additional luminaires in series using two Wieland RST® Classic connectors (plug and socket). With Casambi smart+free Bluetooth® control for wireless networking and operation using an Android / iOS device, free app available for download. Accessories for the electrical connection must be ordered separately. Mounting accessories must always be ordered with the luminaire. Luminaires with limited surface temperature according to DIN EN 60598-2-24 for use in an environment in which deposits of conductive dust on the luminaire can be expected. Approved for use in the food and beverage industry. Suitable for lighting public parking structures and public car parks in accordance with EN-67528. Not a disposable light. Environmentally friendly and resource-saving thanks to replaceable components.

Property	Value
Max. System power:	62 W
Suitable for number of lamps:	1
Length:	1568 mm
Protection rating (IP):	IP67
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	yes
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	Plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	72000 h
Suitable for wall mounting:	yes
Outer diameter:	78 mm
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Socket:	other
With control gear:	yes
Cover material:	plastic opal
Light distributor:	without
Without dimming function:	no
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Control gear:	LED control gear current-controlled
Suitable for recessed mounting:	no
Light colour:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	yes
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Suitable for lamp power:	62 W
Power factor:	0.99
Type of wiring:	with through-wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²

Characteristics

HABPlanox Tube 62W-4000K

Manufacturer

HAN601072.002.1.730

GTIN4051859759270

Covering the luminaire with thermal insulation material possibleYes

Type of wiringWith through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Outer diameter78 mm

Rated lifetime L80/B10 at 25 °C72000 hours

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificYes

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power62W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Power factor0.99

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1568 mm

Max. system performance62W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles3

Impact resistanceIK08

IP protection)IP67

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialPlastic opal

Housing materialPlastic
