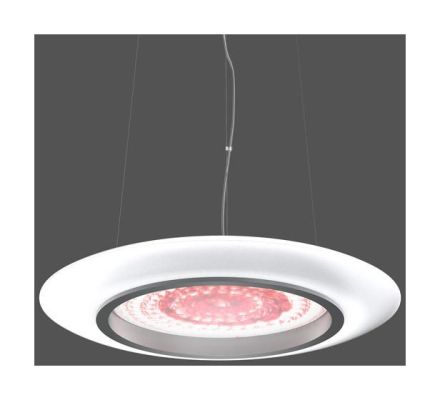

RZB 311674.004.1.76 60+30W 4000K D690 LP1200 DALI alu LED pendant light

RZB 311674.004.1.76 60+30W 4000K D690 LP1200 DALI alu LED pendant light

In stock

SKU: 527715

Price on request

€2,638.46

€0

Overview

A light for interiors that is unique in this form. With exceptionally high and lasting design value: In the ring version as a pendant light. As a variant with opal or Murano glass disc in the inner circle. In the half-ring version as a wall light. Power supply via rope pendulum. Continuously height-adjustable steel cable suspension. High indirect light component. Shape and lighting technology serve as a long-lasting design element in interior architecture. Versions with smart+free Bluetooth control for wireless networking and operation via Android / iOS device, free app available for download. Tunable White versions dynamically adjustable from 2700 K to 6500 K. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L70, B10). Ceiling canopy (D 263 mm, H 40 mm) anodized aluminum. With 3-point steel cable suspension, continuously height-adjustable. Supporting ring made of anodized aluminum. Cover made of opal, satin-matt glass, hand-blown. Inner circular area for additional direct light emission with insert glass D 417 mm, colored glass FerroMurano, red. Light source (LED) included in delivery. Energy efficiency class A+

Feature	Value
Max. System power:	59 W
Rated luminous flux according to IEC 62722-2-1:	5250 lm
Color temperature:	4000 K
Diameter:	690 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	81 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	500 to 1200 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	yes
Cover material:	structured glass
Light source:	LED not replaceable
Housing color:	aluminum
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components can be controlled separately:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	257 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming Trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without Dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	59 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

HAB60+30W 4000K D690 LP1200 DALI alu

Manufacturer

HAN311674.004.1.76

GTIN4051859026396

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-15250lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter690 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power59 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorAluminum

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth81 mm

LED nominal current at constant current257mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance59 W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Pendulum length500 to 1200 mm

Number of poles5

ReflectorWithout

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass structured

Housing materialAluminum
