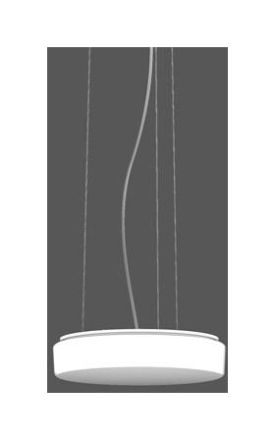

RZB 311978.002.3 Flat Polymero 21W 3000K D360 LP1300 PMMA LED pendant light

RZB 311978.002.3 Flat Polymero 21W 3000K D360 LP1300 PMMA LED pendant light

In stock

SKU: 530902

Price on request

€268.78

€0

Overview

Extensive series consisting of:Pendant lights, ceiling and wall lights. Depending on the model, high-quality polycarbonate or acrylic glass (PMMA) is available for the lamp body. Homogeneous illumination through the use of LED surface modules. Countless customization options. Can also be used as a ready-to-install light ceiling with low setup and maintenance costs. Color tolerance: 3-fold MacAdam (3 SDCM). Ceiling canopy and bracket painted metal. With steel cable suspension, continuously height adjustable. Cover made of plastic (PMMA). Cover fastened with a snap fastener. Energy efficiency class A+, A+A+

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	1950 lm
Color temperature:	3000 K
Diameter:	360 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	87 mm
Protection class (IP):	IP40
Protection class:	I
Pendant length:	200 to 1300 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	79 to 86 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	19 W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Screw terminal

Characteristics

HABFlat Polymer 21W 3000K D360 LP1300 PMMA

Manufacturer

HAN311978.002.3

GTIN4051859130536

Suspension includedYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11950lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter360 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power19 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth87 mm

LED nominal current at constant current79 to 86 mA

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length200 to 1300 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialOther
