RZB 311992.004.1.76 Scapha 51W 4000K 1264x174 LP1200 Dali LED pendant light

RZB 311992.004.1.76 Scapha 51W 4000K 1264x174 LP1200 Dali LED pendant light

In stock

SKU: 530876

Price on request

€1,004.47

€0

Overview

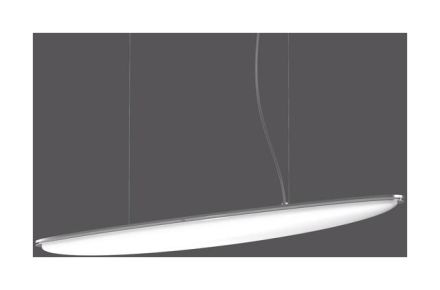

A series of lights for interiors, consisting of: pendant lights, ceiling and wall lights. Hand-made glass using the sinking process, matte on the outside and painted white on the inside. Homogeneous and glare-free illumination of the boat body through specially adapted LED surface boards. The light is clear and timeless and, as a design structure, is closely linked to the architecture. The light is available in two different sizes. Continuously height-adjustable 2-point steel cable suspension. Versions with smart+free Bluetooth control for wireless networking and operation using an Android / iOS device, free app available for download. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L80, B10). Ceiling canopy and glass holder ring made of powder-coated sheet steel. With 2-point steel cable suspension, continuously height-adjustable. Fitting made of powder-coated aluminum. Handcrafted countersunk glass, matte on the outside and white painted on the inside. Light source (LED) included. Energy efficiency class A++

Property	Value
Max. System power:	51 W
Rated luminous flux according to IEC 62722-2-1:	3550 lm
Color temperature:	4000 K
Length:	1264 mm
Width:	174 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	66.50 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	500 to 1200 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal glass
Light source:	LED not replaceable
Housing color:	Silver
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately controllable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK00
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency light:	no
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	212 to 232 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	51 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABScapha 51W 4000K 1264x174 LP1200 Dali

Manufacturer

HAN311992.004.1.76

GTIN4051859155393

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13550lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width174 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power51 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth66.50 mm

LED nominal current at constant current212 to 232 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1264 mm

Max. system performance51 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length500 to 1200 mm

Number of poles5

ReflectorWithout

Impact resistanceIK00

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialAluminum
