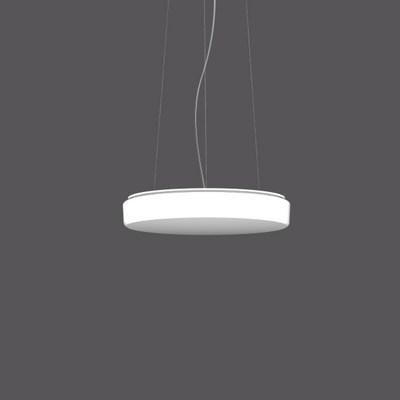

RZB 311999.002.3.76 Flat Polymero Circle 30W 3200lm 830 white LED pendant light

RZB 311999.002.3.76 Flat Polymero Circle 30W 3200lm 830 white LED pendant light

In stock

SKU: 722548

Price on request

€398.22

€0

Overview

Decorative round LED pendant light. Fitting and canopy made of white powder-coated metal. Canopy ø 205 mm, h 35 mm. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser attached with patented locking technology (press lock). Homogeneous and soft illumination. Suitable for pendulums. 3-point steel cable suspension, continuously height-adjustable or desired special lengths on request. TouchDim sensor capable. Sensors for brightness and/or presence can be integrated.

Property	Value
Max. System power:	40 W
Rated luminous flux according to IEC 62722-2-1:	3800 lm
Color temperature:	3000 K
Diameter:	515 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	98 mm
Protection class (IP):	IP40
Protection class:	I
Pendant length:	350 to 1300 mm
Operating device:	LED operating device, current-controlled
Material of the housing:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	230 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components can be controlled separately:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	174 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Phase control dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	40 W
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Screw terminal

Characteristics

HABFlat Polymero Circle 30W 3200lm 830 white

Manufacturer

HAN311999.002.3.76

GTIN4051859370314

Suspension includedYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13800lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter515 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power40W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth98 mm

LED nominal current at constant current174mA

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance40W

With operating deviceYes

With light sourceYes

Nominal voltage230V

Without dimming functionNo

Pendulum length350 to 1300 mm

Number of poles5

ReflectorWithout

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialOther
