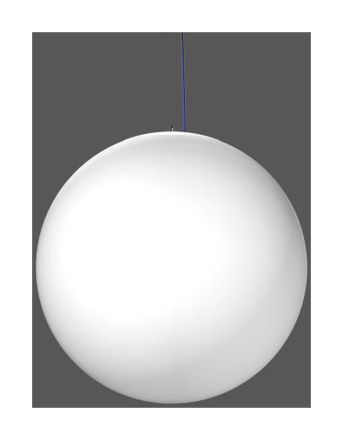

RZB 312108.002 Basic Ball 79W 3000K D600 LP4000 LED pendant light

RZB 312108.002 Basic Ball 79W 3000K D600 LP4000 LED pendant light

In stock

SKU: 530792

Price on request

€945.62

€0

Overview

Pendant light in a timeless, classic spherical design. Spheres in four different diameters. Hand-blown opal glass or impact-resistant plastic sphere. Shadow-free, homogeneous and soft illumination. Continuously height-adjustable 1-point steel cable suspension (special pendant lengths on request) or chrome-plated tubular pendulum. Luminaire luminous efficacy up to 111 lm/W. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L80, B10). Ceiling canopy (D 260 mm, H 50 mm) painted white. With steel cable suspension. Metal bracket painted white. With connecting cable between light and ceiling canopy. Cover glass opal satin matt, hand-blown. Energy efficiency class A+

Property	Value
Max. System power:	79 W
Rated luminous flux according to IEC 62722-2-1:	8200 lm
Color temperature:	3000 K
Diameter:	600 mm
Socket:	without
Suitable for number of bulbs:	6
Height/depth:	600 mm
Protection class (IP):	IP40
Protection class:	I
Pendant length:	4000 mm
Operating device:	LED operating device, current-controlled
Housing material:	other
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal glass
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	yes
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	329 to 359 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	yes
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	750 °C - 30 s
Suitable for lamp power:	79 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABBasic Ball 79W 3000K D600 LP4000

Manufacturer

HAN312108.002

GTIN4051859164456

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-18200lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter600 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power79 W

Suitable for number of lamps6

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11750 °C - 30 s

Height/Depth600 mm

LED nominal current at constant current329 to 359 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance79 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionYes

Pendulum length4000 mm

Number of poles3

ReflectorWithout

Impact resistanceIK02

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialOther
