RZB 312120.002.1.76 Basic Ball 79W 4000K D500 H500 Dali LED pendant light

RZB 312120.002.1.76 Basic Ball 79W 4000K D500 H500 Dali LED pendant light

In stock

SKU: 530808

Price on request

€945.62

€0

Overview

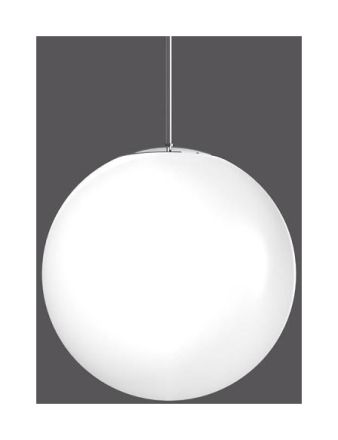

Pendant light in a timelessly classic ball design. Balls in four different diameters. Hand-blown opal glass or impact-resistant plastic ball. Shadow-free, homogeneous and soft illumination. Continuously height-adjustable 1-point steel cable suspension (special pendant lengths on request) or chrome-plated tube pendant. Light output up to 111 lm/W. Color tolerance: 3-fold MacAdam (3 SDCM). LED service life 50,000 h (L80, B10). Ceiling canopy (D 260 mm, H 50 mm) and cap made of chrome-plated metal. With mounting plate including connection terminal and fastening material for pendant tube. Bracket made of powder-coated metal. Cover made of opal glass, satin matt, hand-blown. Order pendant tube separately! Energy efficiency class A+

Property	Value
Max. System power:	79 W
Rated luminous flux according to IEC 62722-2-1:	8400 lm
Color temperature:	4000 K
Diameter:	500 mm
Socket:	without
Suitable for number of bulbs:	6
Height/depth:	500 mm
Protection class (IP):	IP40
Protection class:	I
Operating device:	LED operating device, current-controlled
Material of the housing:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	no
Cover material:	opal glass
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK02
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	329 to 359 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming phase control:	no
Dimming Phase control:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Zigbee dimming:	no
Push-button dimming:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	79 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABBasic Ball 79W 4000K D500 H500 Dali

Manufacturer

HAN312120.002.1.76

GTIN4051859164845

Suspension includedNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-18400lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter500 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power79 W

Suitable for number of lamps6

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth500 mm

LED nominal current at constant current329 to 359 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance79 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles5

ReflectorWithout

Impact resistanceIK02

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC/DC

Cover materialGlass opal

Housing materialOther
