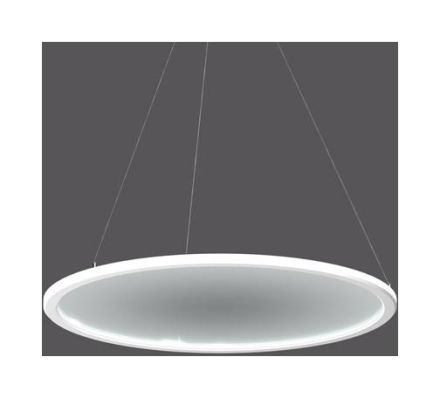

RZB 312159.002.1.76 Sidelite 39W 4000K D580 H15 LP1500 Dali LED pendant light

RZB 312159.002.1.76 Sidelite 39W 4000K D580 H15 LP1500 Dali LED pendant light

In stock

SKU: 530901

Price on request

€372.22

€0

Overview

Transparent and opal design. Highly economical luminaire series with progressive LED technology, consisting of ceiling, wall and pendant luminaires for indoor use. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Light guide and diffuser made of non-yellowing PMMA with fine microprismatics. RZB SIDELITE technology: Lateral light coupling for above-average homogeneous luminance distribution. LED service life 50,000 h (L70, B10). Extremely low installation height (15 mm). Very simple converter installation using a twist-and-plug system. Ceiling canopy (D 202 mm, H 56 mm) metal, powder-coated. Control gear built into the ceiling canopy. With 3-point steel cable suspension, infinitely height-adjustable. Frame made of powder-coated aluminum. Diffuser made of clear plastic (PMMA). Diffuser and light guide made of non-yellowing plastic (PMMA). Lateral light coupling with LED. Light output direct 50% / indirect 50%. Light source (LED) included in delivery. Pendant set including ceiling canopy included in delivery. Energy efficiency class A+

Property	Value
Max. System power:	39 W
Rated luminous flux according to IEC 62722-2-1:	3550 lm
Color temperature:	4000 K
Diameter:	580 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	15 mm
Protection class (IP):	IP40
Protection class:	II
Pendant length:	300 to 1500 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	transparent plastic
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC/DC
LED nominal current at constant current:	162 to 177 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	39 W
Power factor:	0.95
Type of wiring:	Termination
Number of poles:	4
Conductor cross-section:	1.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABSidelite 39W 4000K D580 H15 LP1500 Dali

Manufacturer

HAN312159.002.1.76

GTIN4051859186250

Suspension includedYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13550lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter580 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power39 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth15 mm

LED nominal current at constant current162 to 177 mA

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance39 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length300 to 1500 mm

Number of poles4

ReflectorWithout

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage typeAC/DC

Cover materialPlastic transparent

Housing materialAluminum
