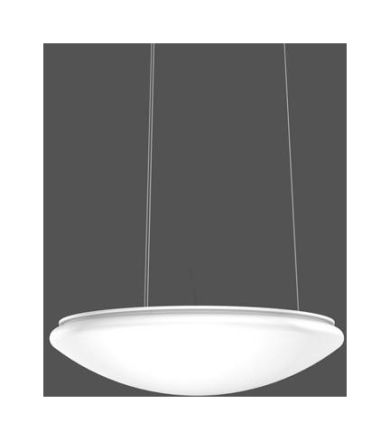

RZB 312245.002.1 Flat Polymero 29.3W 4000K LED pendant light

RZB 312245.002.1 Flat Polymero 29.3W 4000K LED pendant light

In stock

SKU: 532063

Price on request

€306.12

€0

Overview

A series with an unprecedented variety of types, consisting of: pendant lights, ceiling lights and wall lights. Versions with a high protection class allow outdoor use. Indoors they prevent contamination from flies or dust. Depending on the model, high-quality polycarbonate or acrylic glass (PMMA) is available for the lamp body. Homogeneous illumination through the use of LED surface modules. Various diameters available, from 360 mm to 1700 mm. Can also be used as a ready-to-install light ceiling with low setup and maintenance costs. Ceiling canopy and bracket painted metal. With steel cable suspension, continuously height adjustable. Cover made of plastic (PMMA). Cover fastened with a press lock. Energy efficiency class A+, A+A+

Property	Value
Max. System power:	24 W
Rated luminous flux according to IEC 62722-2-1:	2850 lm
Color temperature:	4000 K
Diameter:	460 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	120 mm
Protection class (IP):	IP40
Protection class:	I
Pendant length:	200 to 1300 mm
Operating device:	LED operating device, current-controlled
Housing material:	other
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Grid design:	without
Reflector:	without
Suitable for strip light configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	100 to 109 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	24 W
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	Screw terminal

Characteristics

HABFlat Polymer 29,3W 4000K

Manufacturer

HAN312245.002.1

GTIN4051859234609

Suspension includedYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12850lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter460 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power24W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth120 mm

LED nominal current at constant current100 to 109 mA

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance24W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length200 to 1300 mm

Number of poles3

ReflectorWithout

Impact resistanceIK03

IP protection)IP40

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialOther
