RZB 312263.002.1.76 TwinDot S 54W 1200x350x20mm 4000K DALI LED pendant light

RZB 312263.002.1.76 TwinDot S 54W 1200x350x20mm 4000K DALI LED pendant light

In stock

SKU: 804855

Price on request

€945.62

€0

Overview

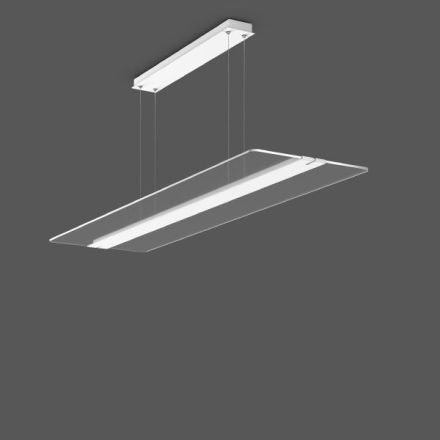

LED pendant light with an extremely flat and frameless appearance. Lamp center bar made of extruded aluminum profile, powder-coated. Transparent light guide made of UV-stable acrylic glass (PMMA) with TWINDOT prismatics. Light control through perfectly glare-free TWINDOT technology for pleasantly soft light with soft shadows. Evenly wide light distribution, indirect and direct. Light output direct 55%, indirect 45%. 4-point steel cable suspension, continuously height-adjustable. Operating device integrated in the canopy (powder-coated white). Power supply via cable pendulum. Excellently suited for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1.

Property	Value
Max. System power:	54 W
Rated luminous flux according to IEC 62722-2-1:	6500 lm
Color temperature:	4000 K
Length:	1200 mm
Width:	350 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	20 mm
Protection type (IP):	IP20
Protection class:	I
Pendant length:	500 to 1200 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
With Operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Cover material:	transparent plastic
Light source:	LED not replaceable
Housing color:	white
Design of the grid:	without
Reflector:	without
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for Emergency light:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	225 to 245 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	60000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	54 W
Power factor:	0.95
Type of wiring:	suitable for through wiring
Number of poles:	5
Conductor cross-section:	2.50 mm²
Connection type:	Plug-in terminal

Characteristics

HABTwinDot S 54W 1200x350x20mm 4000K DALI

Manufacturer

HAN312263.002.1.76

GTIN4051859261650

Suspension includedYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-16500lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width350 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power54W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth20 mm

LED nominal current at constant current225 to 245 mA

Power factor0.95

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1200 mm

Max. system performance54W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length500 to 1200 mm

Number of poles5

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialAluminum
