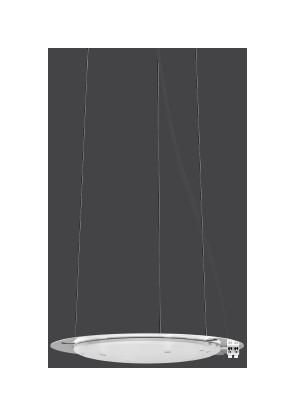

RZB 312282.002 Flatliner Slim 21W 3000K D LED pendant light

RZB 312282.002 Flatliner Slim 21W 3000K D LED pendant light

In stock

SKU: 532242

Price on request

€227.98

€0

Overview

Decorative fabric lampshade for interior design. The base lamp for the fabric lampshades is the Flatliner Slim series. Over 70 different standard colors of the fabric lampshade to choose from. Material of the fabric lampshade: Chintz or, optionally, flame-retardant fabric in accordance with B1. Fabric lampshade can be mounted on the base lamp without tools. Energy-efficient decorative lamp thanks to LED fittings. LED service life: 50,000 hours (L70, B10). Color tolerance: 3-fold MacAdam (3 SDCM). Ceiling or pendant mounting. Very flat construction with a height of just 60 mm. Ceiling canopy and bracket made of powder-coated metal. With steel cable suspension, continuously height-adjustable. Light source (LED) included in delivery. Base lamp without cover. Order fabric lampshade and cover plate separately! Energy efficiency class A+, A+A+

Property	Value
Max. System power:	19 W
Rated luminous flux according to IEC 62722-2-1:	1600 lm
Color temperature:	3000 K
Diameter:	317 mm
Socket:	without
Suitable for number of bulbs:	1
Height/depth:	34 mm
Protection class (IP):	IP20
Protection class:	I
Pendant length:	200 to 1300 mm
Operating device:	LED operating device, current-controlled
Housing material:	Aluminum
Suitable for computer workstations in accordance with EN 12464-1:	no
With light source:	yes
With operating device:	yes
Nominal voltage:	220 to 240 V
Suspension included:	yes
Light source:	LED not replaceable
Housing color:	white
Suitable for light strip configuration:	no
Direct/indirect components separately adjustable:	no
Light distribution:	symmetrical
Light emission:	direct/indirect
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
LED nominal current at constant current:	79 to 86 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (device integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	50000 h
Without dimming function:	no
Light distributor:	without
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for lamp power:	19 W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	3
Conductor cross-section:	2.50 mm²
Connection type:	screw terminal

Characteristics

HABFlatliner Slim 21W 3000K D

Manufacturer

HAN312282.002

GTIN4051859272915

Suspension includedYes

Connection typeScrew terminal

Type of wiringSuitable for through wiring

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11600lm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Direct/indirect components can be controlled separatelyNo

Diameter317 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power19 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth34 mm

LED nominal current at constant current79 to 86 mA

Power factor0.90

Conductor cross-section2.50 mm²

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance19 W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Pendulum length200 to 1300 mm

Number of poles3

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Housing materialAluminum
